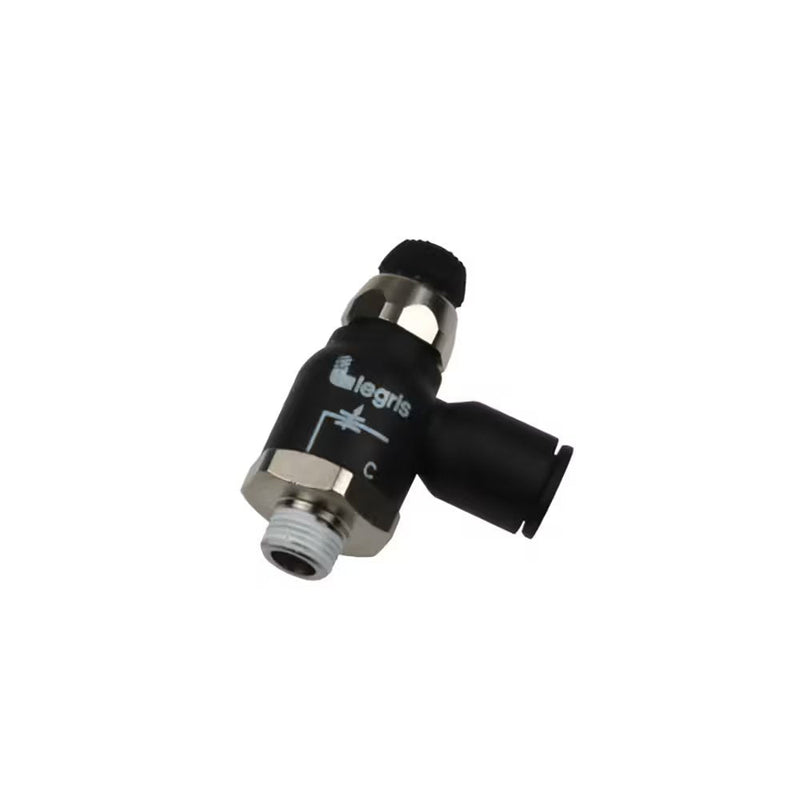

7067 08 13 by Parker | Legris Bi-Directional Compact Flow Regulator | 8 mm Tube Size x 1/4" Male BSPT Thread | 19 mm Hex | 90° Elbow | Polymer

7067 08 13 by Parker | Legris Bi-Directional Compact Flow Regulator | 8mm Tube Size x 1/4" Male BSPT Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

Save $33.84 Save $33.84
$288.37
$288.37 - $288.37
$288.37
$254.53
$254.53 - $254.53
$254.53
10 items | $25.45 each

by Parker Hannifin
Flow Control Regulators:7067 Bi-Directional Compact Flow Regulator, Male BSPT Thread
Specifications for Variant SKU: 7067 08 13 Parker | 10 |
Series: 7067 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F F1 H (max) H (min) H1 L L1 ØT Kg
7067 04 10 4 mm 1/8" 10 mm 16 mm 42.5 mm 36.5 mm 14.7 mm 22 mm 9 mm 10 mm .025 Kg
7067 06 10 6 mm 1/8" 10 mm 16 mm 42.5 mm 36.5 mm 14.7 mm 22 mm 9 mm 10 mm .010 Kg
7067 06 13 6 mm 1/4" 10 mm 16 mm 42.5 mm 36.5 mm 14.7 mm 22 mm 9 mm 10 mm .014 Kg
7067 08 10 8 mm 1/8" 14 mm 19 mm 45 mm 40 mm 16.5 mm 28 mm 10.5 mm 14 mm .034 Kg
7067 08 13 8 mm 1/4" 14 mm 19 mm 45 mm 40 mm 16.5 mm 28 mm 10.5 mm 14 mm .036 Kg
7067 08 17 8 mm 3/8" 14 mm 19 mm 45 mm 40 mm 16.5 mm 28 mm 11 mm 14 mm .042 Kg

Pre-coated thread
