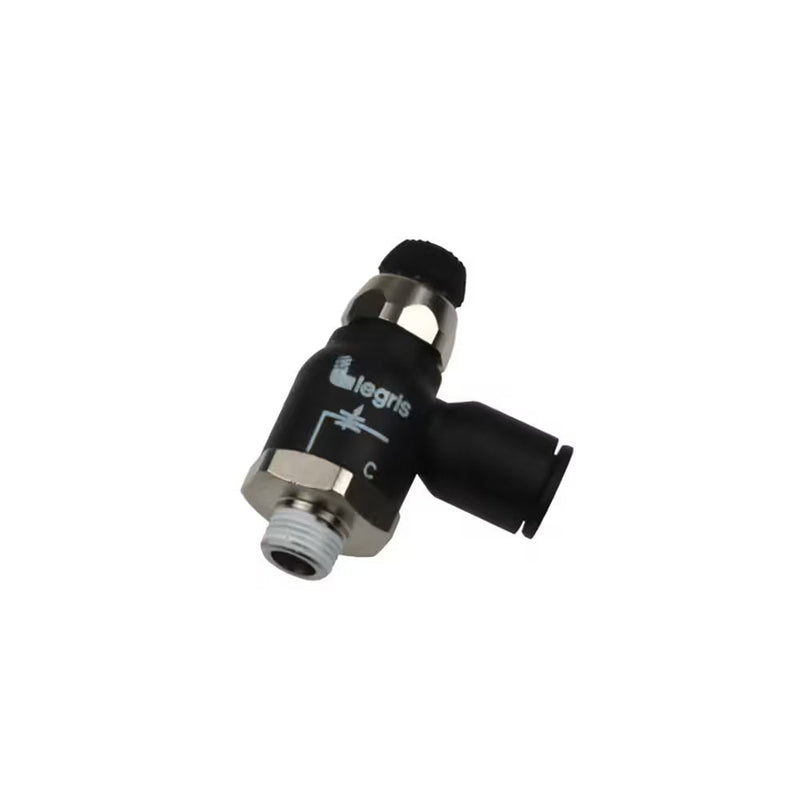

7067 08 10 by Parker | Legris Bi-Directional Compact Flow Regulator | 8mm Tube Size x 1/8" Male BSPT Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

Save $31.08

$261.48

$261.48 - $261.48

$261.48

$230.40

$230.40 - $230.40

$230.40

10 items | $23.04 each

by Parker Hannifin
Flow Control Regulators:7067 Bi-Directional Compact Flow Regulator, Male BSPT Thread

Specifications for Variant SKU: 7067 08 10 Parker \| 10 \|
Series:	7067 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	F1	H (max)	H (min)	H1	L	L1	ØT	Kg
7067 04 10	4 mm	1/8"	10 mm	16 mm	42.5 mm	36.5 mm	14.7 mm	22 mm	9 mm	10 mm	.025 Kg
7067 06 10	6 mm	1/8"	10 mm	16 mm	42.5 mm	36.5 mm	14.7 mm	22 mm	9 mm	10 mm	.010 Kg
7067 06 13	6 mm	1/4"	10 mm	16 mm	42.5 mm	36.5 mm	14.7 mm	22 mm	9 mm	10 mm	.014 Kg
7067 08 10	8 mm	1/8"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	10.5 mm	14 mm	.034 Kg
7067 08 13	8 mm	1/4"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	10.5 mm	14 mm	.036 Kg
7067 08 17	8 mm	3/8"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	11 mm	14 mm	.042 Kg

Pre-coated thread
