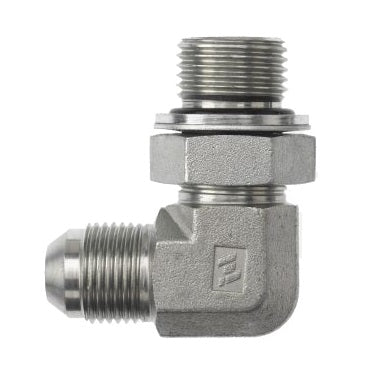

7202-08-10-NWO-FG by Brennan Inc. | -08 Male JIC x -10 Male BSPP Adjustable O-Ring Boss | 90° Elbow | Forged Steel

7202-08-10-NWO-FG by Brennan Inc. | -08 Male JIC x -10 Male BSPP Adjustable O-Ring Boss | 90° Elbow | Forged Steel

$15.37 - $15.37
$15.37
$19.51
$19.51 - $19.51
$19.51

Brennan Inc.
Conversion Adapters: 7202-NWO - Male JIC x Male BSPP Adjustable O-Ring Boss 90° Elbow
Specifications for Variant SKU: 7202-08-10-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male JIC, 5/8in Male O-Ring Boss
Material(s): Steel
Part Number Material B1JIC 37° B2BSPP B1Drill B2Drill MLength LLength CHex YFlats
7202-04-02-NWO-FG Forged Steel 7/16-20" 1/8-28" 4.4mm 4.2mm 22.60mm 26.20mm 14.00mm 11.10mm
7202-04-04-NWO-FG Forged Steel 7/16-20" 1/4-19" 4.40mm 7.50mm 26.90mm 32.00mm 19.00mm 14.00mm
7202-04-06-NWO-FG Forged Steel 7/16-20" 3/8-19" 4.40mm 9.50mm 28.40mm 36.80mm 22.00mm 19.00mm
7202-05-04-NWO-FG Forged Steel 1/2-20" 1/4-19" 5.50mm 5.00mm 26.60mm 31.80mm 19.00mm 14.30mm
7202-06-04-NWO-FG Forged Steel 9/16-18" 1/4-19" 7.50mm 7.50mm 26.90mm 31.80mm 19.00mm 14.30mm
7202-06-06-NWO-FG Forged Steel 9/16-18" 3/8-19" 7.50mm 9.50mm 29.00mm 36.80mm 22.00mm 19.00mm
7202-06-08-NWO-FG Forged Steel 9/16-18" 1/2-14" 7.50mm 12.30mm 31.00mm 43.20mm 27.00mm 22.20mm
7202-08-04-NWO-FG Forged Steel 3/4-16" 1/4-19" 9.90mm 7.50mm 31.80mm 36.80mm 19.00mm 19.00mm
7202-08-06-NWO-FG Forged Steel 3/4-16" 3/8-19" 9.90mm 9.50mm 31.80mm 36.80mm 22.00mm 19.00mm
7202-08-08-NWO-FG Forged Steel 3/4-16" 1/2-14" 9.90mm 12.30mm 33.80mm 43.20mm 27.00mm 22.00mm
7202-08-10-NWO-FG Forged Steel 3/4-16" 5/8-14" 9.90mm 14.00mm 37.00mm 48.00mm 30.00mm 27.00mm
7202-08-12-NWO-FG Forged Steel 3/4-16" 3/4-14" 9.90mm 15.50mm 36.10mm 49.30mm 36.00mm 27.00mm
7202-10-06-NWO-FG Forged Steel 7/8-14" 3/8-19" 12.30mm 9.50mm 36.80mm 39.40mm 22.00mm 22.20mm
7202-10-08-NWO-FG Forged Steel 7/8-14" 1/2-14" 12.30mm 12.30mm 36.80mm 43.20mm 27.00mm 22.20mm
7202-10-12-NWO-FG Forged Steel 7/8-14" 3/4-14" 12.30mm 15.50mm 39.10mm 49.30mm 36.00mm 27.00mm
7202-12-08-NWO-FG Forged Steel 1-1/16-12" 1/2-14" 15.50mm 12.30mm 42.00mm 49.50mm 27.00mm 27.00mm
7202-12-12-NWO-FG Forged Steel 1-1/16-12" 3/4-14" 15.50mm 15.50mm 42.20mm 49.30mm 36.00mm 27.00mm
7202-12-16-NWO-FG Forged Steel 1-1/16-12" 1-11" 15.50mm 21.40mm 44.70mm 52.10mm 41.00mm 33.30mm
7202-16-12-NWO-FG Forged Steel 1-5/16-12" 3/4-14" 21.40mm 15.50mm 46.00mm 49.50mm 36.00mm 33.00mm
7202-16-16-NWO-FG Forged Steel 1-5/16-12" 1-11" 21.50mm 21.50mm 46.00mm 52.00mm 41.00mm 33.00mm
7202-16-20-NWO-FG Forged Steel 1-5/16-12" 1-1/4-11" 21.50mm 27.40mm 51.10mm 57.20mm 50.00mm 41.30mm
7202-20-20-NWO-FG Forged Steel 1-5/8-12" 1-1/4-11" 27.40mm 27.50mm 52.30mm 57.00mm 50.00mm 41.30mm
7202-24-24-NWO-FG Forged Steel 1-7/8-12" 1-1/2-11" 33.30mm 33.30mm 59.00mm 67.60mm 55.00mm 47.60mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
