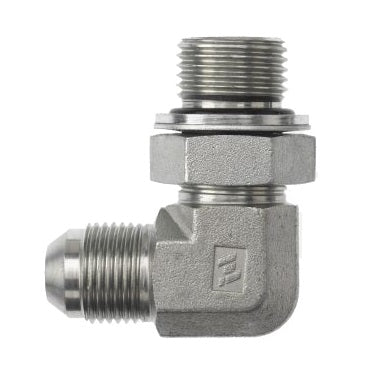

7202-12-12-NWO-FG by Brennan Inc. | -12 Male JIC x -12 Male BSPP Adjustable O-Ring Boss | 90° Elbow | Forged Steel

7202-12-12-NWO-FG by Brennan Inc. | -12 Male JIC x -12 Male BSPP Adjustable O-Ring Boss | 90° Elbow | Forged Steel

Save $2.52 Save $2.52
$22.65
$22.65 - $22.65
$22.65
$20.13
$20.13 - $20.13
$20.13

Brennan Inc.
Conversion Adapters: 7202-NWO - Male JIC x Male BSPP Adjustable O-Ring Boss 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7202-12-12-NWO-FG Brennan
Shape (Orientation): 90 Degree
Material(s): Steel
Part Number Material B1JIC 37° B2BSPP B1Drill B2Drill MLength LLength CHex YFlats
7202-04-02-NWO-FG Forged Steel 7/16-20" 1/8-28" 4.4mm 4.2mm 22.60mm 26.20mm 14.00mm 11.10mm
7202-04-04-NWO-FG Forged Steel 7/16-20" 1/4-19" 4.40mm 7.50mm 26.90mm 32.00mm 19.00mm 14.00mm
7202-04-06-NWO-FG Forged Steel 7/16-20" 3/8-19" 4.40mm 9.50mm 28.40mm 36.80mm 22.00mm 19.00mm
7202-05-04-NWO-FG Forged Steel 1/2-20" 1/4-19" 5.50mm 5.00mm 26.60mm 31.80mm 19.00mm 14.30mm
7202-06-04-NWO-FG Forged Steel 9/16-18" 1/4-19" 7.50mm 7.50mm 26.90mm 31.80mm 19.00mm 14.30mm
7202-06-06-NWO-FG Forged Steel 9/16-18" 3/8-19" 7.50mm 9.50mm 29.00mm 36.80mm 22.00mm 19.00mm
7202-06-08-NWO-FG Forged Steel 9/16-18" 1/2-14" 7.50mm 12.30mm 31.00mm 43.20mm 27.00mm 22.20mm
7202-08-04-NWO-FG Forged Steel 3/4-16" 1/4-19" 9.90mm 7.50mm 31.80mm 36.80mm 19.00mm 19.00mm
7202-08-06-NWO-FG Forged Steel 3/4-16" 3/8-19" 9.90mm 9.50mm 31.80mm 36.80mm 22.00mm 19.00mm
7202-08-08-NWO-FG Forged Steel 3/4-16" 1/2-14" 9.90mm 12.30mm 33.80mm 43.20mm 27.00mm 22.00mm
7202-08-10-NWO-FG Forged Steel 3/4-16" 5/8-14" 9.90mm 14.00mm 37.00mm 48.00mm 30.00mm 27.00mm
7202-08-12-NWO-FG Forged Steel 3/4-16" 3/4-14" 9.90mm 15.50mm 36.10mm 49.30mm 36.00mm 27.00mm
7202-10-06-NWO-FG Forged Steel 7/8-14" 3/8-19" 12.30mm 9.50mm 36.80mm 39.40mm 22.00mm 22.20mm
7202-10-08-NWO-FG Forged Steel 7/8-14" 1/2-14" 12.30mm 12.30mm 36.80mm 43.20mm 27.00mm 22.20mm
7202-10-12-NWO-FG Forged Steel 7/8-14" 3/4-14" 12.30mm 15.50mm 39.10mm 49.30mm 36.00mm 27.00mm
7202-12-08-NWO-FG Forged Steel 1-1/16-12" 1/2-14" 15.50mm 12.30mm 42.00mm 49.50mm 27.00mm 27.00mm
7202-12-12-NWO-FG Forged Steel 1-1/16-12" 3/4-14" 15.50mm 15.50mm 42.20mm 49.30mm 36.00mm 27.00mm
7202-12-16-NWO-FG Forged Steel 1-1/16-12" 1-11" 15.50mm 21.40mm 44.70mm 52.10mm 41.00mm 33.30mm
7202-16-12-NWO-FG Forged Steel 1-5/16-12" 3/4-14" 21.40mm 15.50mm 46.00mm 49.50mm 36.00mm 33.00mm
7202-16-16-NWO-FG Forged Steel 1-5/16-12" 1-11" 21.50mm 21.50mm 46.00mm 52.00mm 41.00mm 33.00mm
7202-16-20-NWO-FG Forged Steel 1-5/16-12" 1-1/4-11" 21.50mm 27.40mm 51.10mm 57.20mm 50.00mm 41.30mm
7202-20-20-NWO-FG Forged Steel 1-5/8-12" 1-1/4-11" 27.40mm 27.50mm 52.30mm 57.00mm 50.00mm 41.30mm
7202-24-24-NWO-FG Forged Steel 1-7/8-12" 1-1/2-11" 33.30mm 33.30mm 59.00mm 67.60mm 55.00mm 47.60mm
