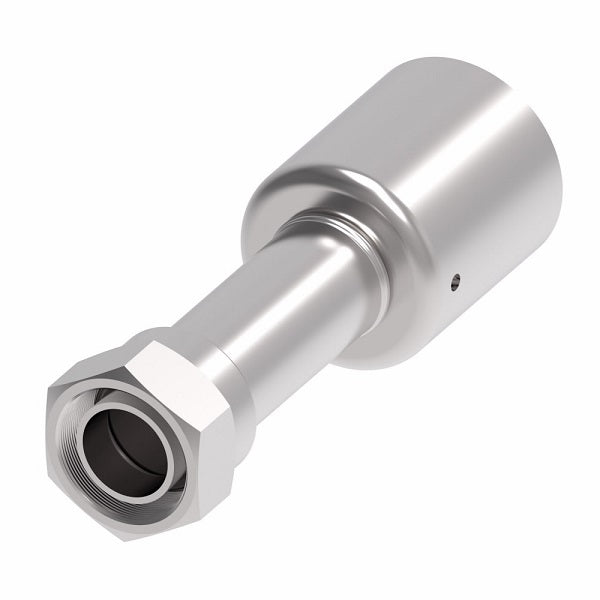

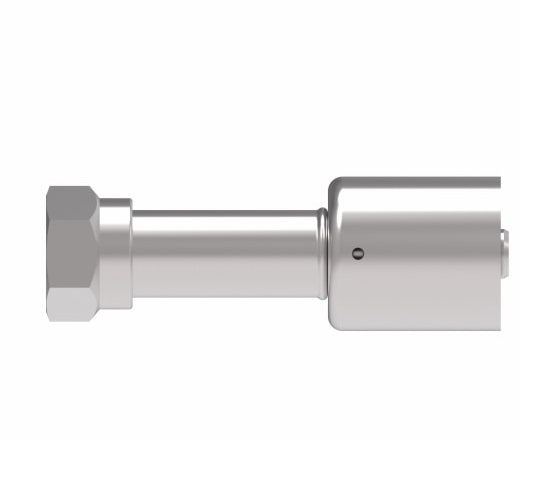

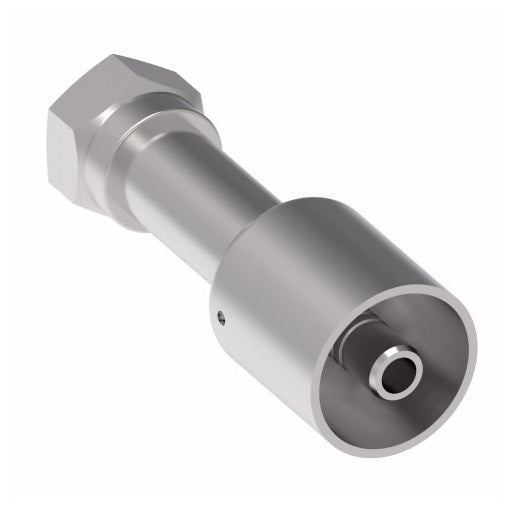

75708E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

75708E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

$24.00 - $24.00
$24.00
$24.00 - $24.00
$24.00

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel - Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 75708E-Z51 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F
75706E-Z47 5/16" 3/8" 5/8-18 2.78" 1.38" 1.50" 3/4"
75706E-Z49 5/16" 1/2" 3/4-16 2.90" 1.50" 1.63" 7/8"
75708E-Z49 13/32" 1/2" 3/4-16 3.06" 1.66" 1.75" 7/8"
75708E-Z51 13/32" 5/8" 7/8-14 3.09" 1.69" 1.88" 1-1/16"
75710E-Z51 1/2" 5/8" 7/8-14 3.09" 1.69" 1.88" 1-1/16"
75710E-Z53 1/2" 3/4" 1-1/16-14 3.21" 1.81" 2.00" 1-1/4"
75712E-Z51 5/8" 5/8" 7/8-14 3.31" 1.81" 2.00" 1-1/16"
75712E-Z53 5/8" 3/4" 1-1/16-14 3.31" 1.81" 2.00" 1-1/4"

Note: Drawings may differ from actual parts.
