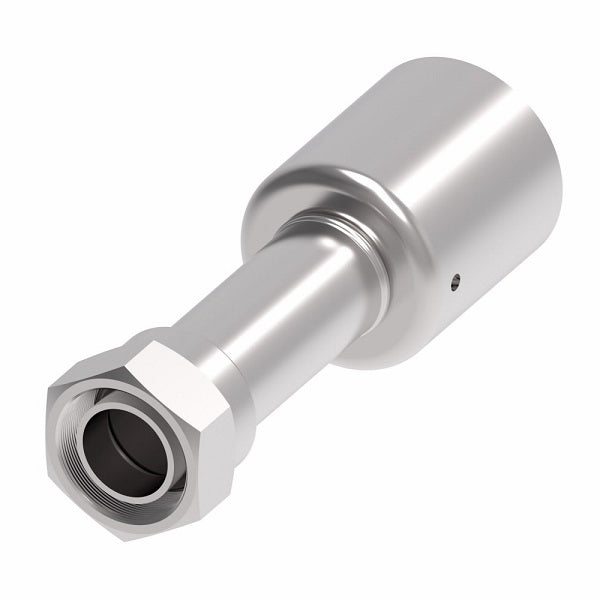

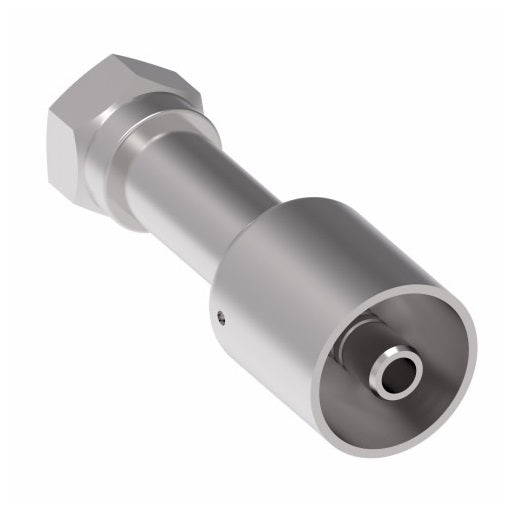

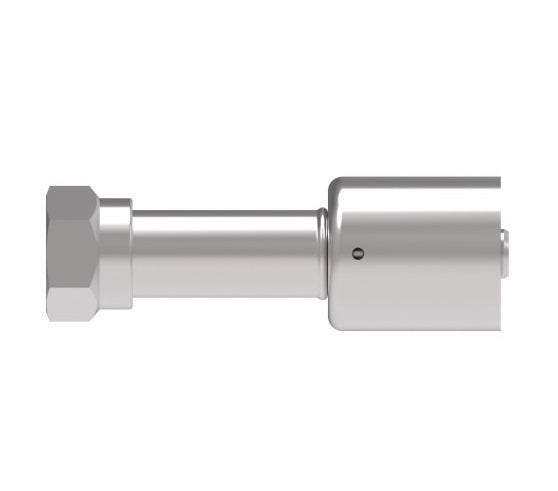

75712E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -10 Hose Barb | Steel

75712E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -10 Hose Barb | Steel

Name: 75712E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75712E-Z51 Danfoss
Price: 19.4 USD
Availability: InStock

$19.40 - $19.40

$19.40

$19.40 - $19.40

$19.40

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel - Straight

Quantity

Specifications for Variant SKU: 75712E-Z51 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Hose Cut-Off Factor	Hex F
75706E-Z47	5/16"	3/8"	5/8-18	2.78"	1.38"	1.50"	3/4"
75706E-Z49	5/16"	1/2"	3/4-16	2.90"	1.50"	1.63"	7/8"
75708E-Z49	13/32"	1/2"	3/4-16	3.06"	1.66"	1.75"	7/8"
75708E-Z51	13/32"	5/8"	7/8-14	3.09"	1.69"	1.88"	1-1/16"
75710E-Z51	1/2"	5/8"	7/8-14	3.09"	1.69"	1.88"	1-1/16"
75710E-Z53	1/2"	3/4"	1-1/16-14	3.21"	1.81"	2.00"	1-1/4"
75712E-Z51	5/8"	5/8"	7/8-14	3.31"	1.81"	2.00"	1-1/16"
75712E-Z53	5/8"	3/4"	1-1/16-14	3.31"	1.81"	2.00"	1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
