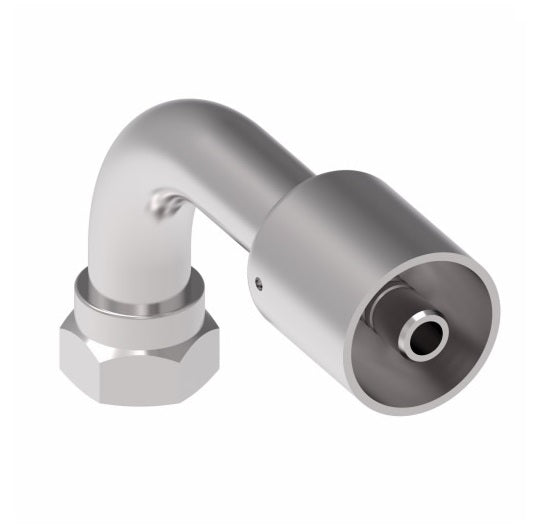

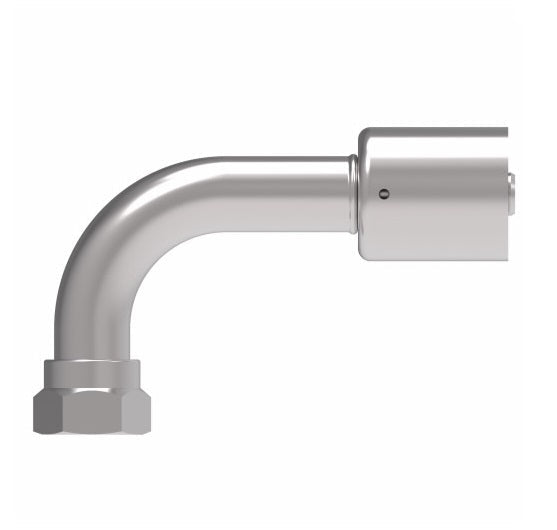

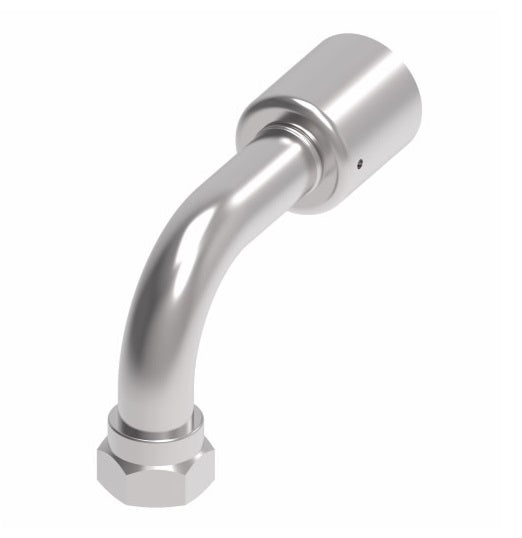

75708E-Z89 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

75708E-Z89 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

Name: 75708E-Z89 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75708E-Z89 Danfoss
Price: 19.47 USD
Availability: InStock

$19.47 - $19.47

$19.47

$19.47 - $19.47

$19.47

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube - 90° Elbow

Quantity

Specifications for Variant SKU: 75708E-Z89 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Drop B	Hose Cut-Off Factor	Hex F
75706E-Z87	5/16"	3/8"	5/8-18	4.07"	2.67"	1.12"	2.75"	3/4"
75706E-Z89	5/16"	1/2"	3/4-16	4.14"	2.74"	1.31"	2.88"	7/8"
75708E-Z89	13/32"	1/2"	3/4-16	4.14"	2.74"	1.50"	2.88"	7/8"
75710E-Z91	1/2"	5/8"	7/8-14	4.25"	2.85"	1.75"	3.00"	1-1/16"
75712E-Z91	5/8"	5/8"	7/8-14	4.35"	2.85"	1.75"	3.00"	1-1/16"
75712E-Z93	5/8"	3/4"	1-1/16-14	4.45"	2.95"	1.75"	3.13"	1-1/4"

Note: Drawings may differ from actual parts.
