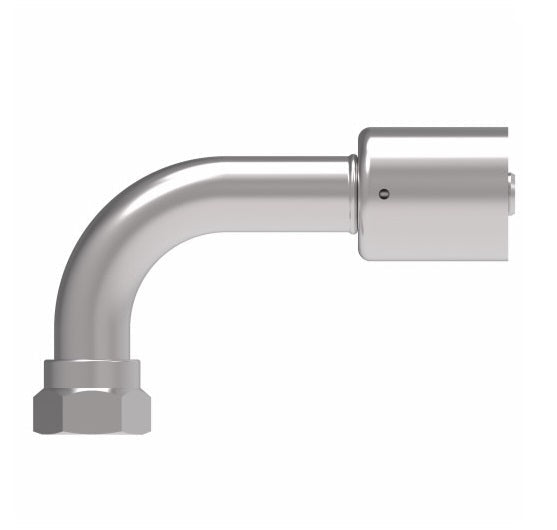

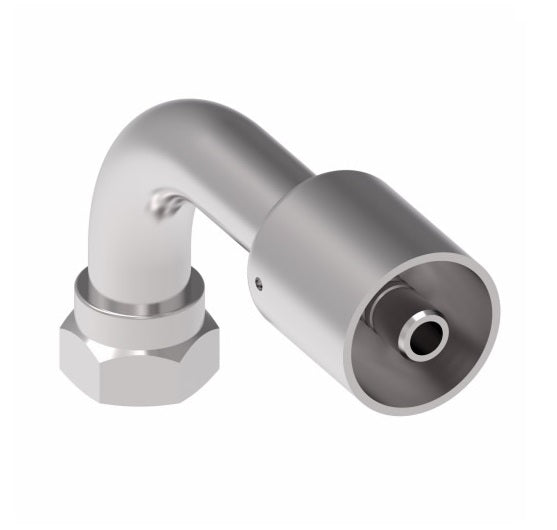

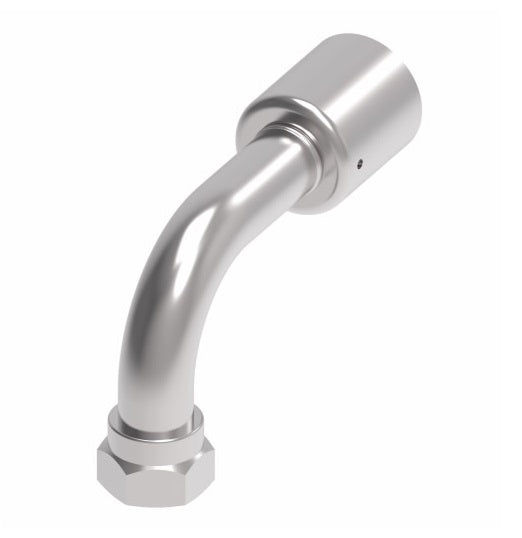

75712E-Z93 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -12 Female Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
75712E-Z93 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -12 Female Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
75712E-Z93 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -12 Female Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
75712E-Z93 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -12 Female Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel

75712E-Z93 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -12 Female Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel

$24.51 - $24.51
$24.51
$24.51 - $24.51
$24.51

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube - 90° Elbow
Specifications for Variant SKU: 75712E-Z93 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Drop
B		 Hose Cut-Off
Factor		 Hex
F
75706E-Z87 5/16" 3/8" 5/8-18 4.07" 2.67" 1.12" 2.75" 3/4"
75706E-Z89 5/16" 1/2" 3/4-16 4.14" 2.74" 1.31" 2.88" 7/8"
75708E-Z89 13/32" 1/2" 3/4-16 4.14" 2.74" 1.50" 2.88" 7/8"
75710E-Z91 1/2" 5/8" 7/8-14 4.25" 2.85" 1.75" 3.00" 1-1/16"
75712E-Z91 5/8" 5/8" 7/8-14 4.35" 2.85" 1.75" 3.00" 1-1/16"
75712E-Z93 5/8" 3/4" 1-1/16-14 4.45" 2.95" 1.75" 3.13" 1-1/4"

Note: Drawings may differ from actual parts.
