75708E-Z49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

75708E-Z49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

Name: 75708E-Z49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -08 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75708E-Z49 Danfoss
Price: 17.59 USD
Availability: InStock

$17.59 - $17.59

$17.59

$17.59 - $17.59

$17.59

Weatherhead by Danfoss

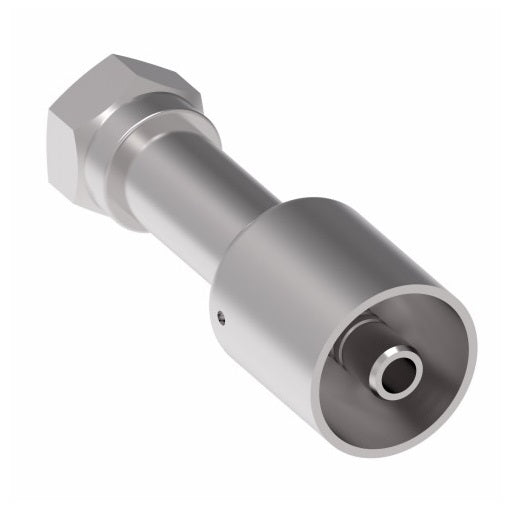

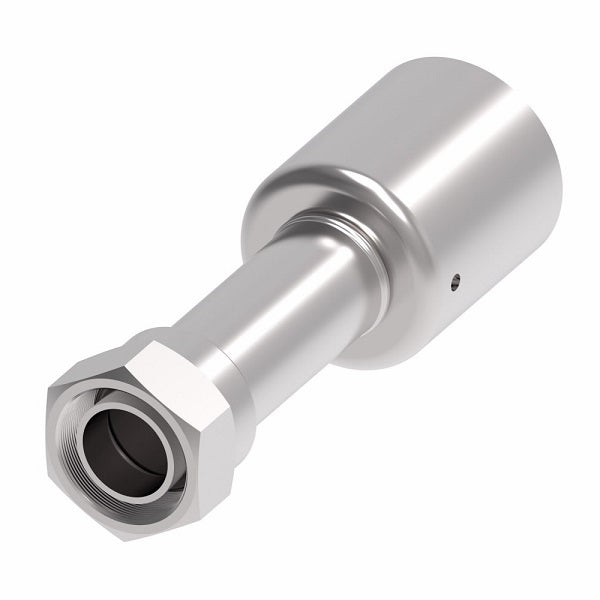

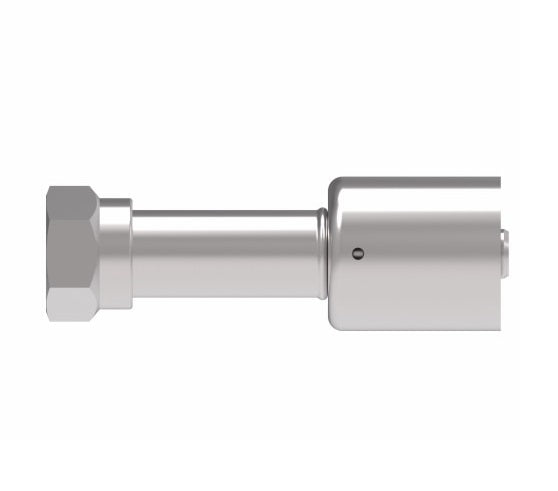

Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel - Straight

Quantity

Specifications for Variant SKU: 75708E-Z49 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Hose Cut-Off Factor	Hex F
75706E-Z47	5/16"	3/8"	5/8-18	2.78"	1.38"	1.50"	3/4"
75706E-Z49	5/16"	1/2"	3/4-16	2.90"	1.50"	1.63"	7/8"
75708E-Z49	13/32"	1/2"	3/4-16	3.06"	1.66"	1.75"	7/8"
75708E-Z51	13/32"	5/8"	7/8-14	3.09"	1.69"	1.88"	1-1/16"
75710E-Z51	1/2"	5/8"	7/8-14	3.09"	1.69"	1.88"	1-1/16"
75710E-Z53	1/2"	3/4"	1-1/16-14	3.21"	1.81"	2.00"	1-1/4"
75712E-Z51	5/8"	5/8"	7/8-14	3.31"	1.81"	2.00"	1-1/16"
75712E-Z53	5/8"	3/4"	1-1/16-14	3.31"	1.81"	2.00"	1-1/4"

Note: Drawings may differ from actual parts.
