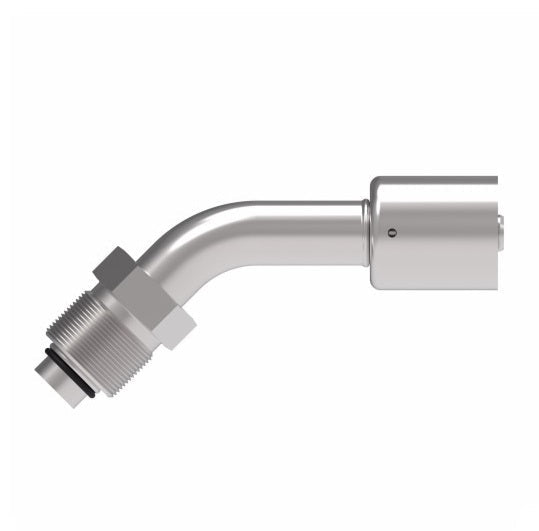

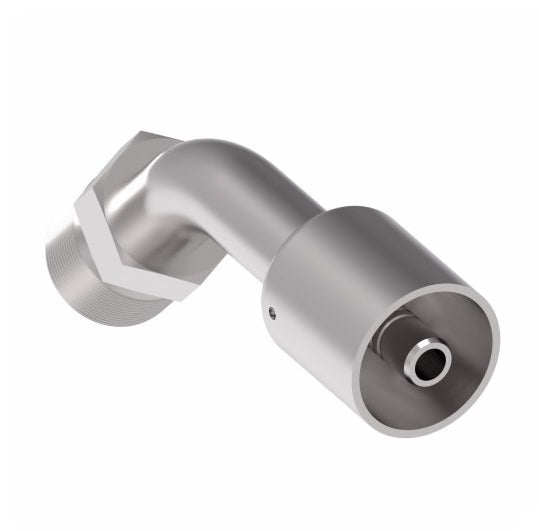

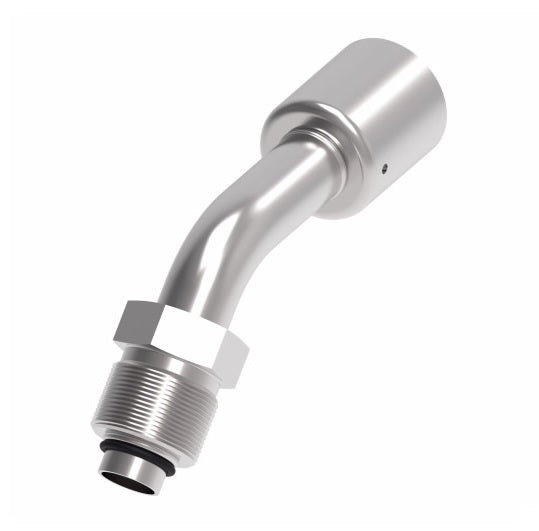

75710E-Z30 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

75710E-Z30 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

Name: 75710E-Z30 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75710E-Z30 Danfoss
Price: 23.23 USD
Availability: InStock

$23.23 - $23.23

$23.23

$23.23 - $23.23

$23.23

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Swivel Tube - 45° Elbow

Quantity

Specifications for Variant SKU: 75710E-Z30 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	45 Degree
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run B	Hose Cut-Off Factor	Hex F
75706E-Z26	5/16"	3/8"	5/8-18	3.09"	0.88"	1.88"	5/8"
75708E-Z28	13/32"	1/2"	3/4-18	3.59"	1.03"	2.38"	3/4"
75710E-Z30	1/2"	5/8"	7/8-18	3.71"	1.06"	2.50"	7/8"
75712E-Z30	5/8"	5/8"	7/8-18	4.19"	1.19"	2.88"	7/8"
75712E-Z32	5/8"	3/4"	1-1/16-16	4.19"	1.19"	2.88"	1-1/16"

Note: Drawings may differ from actual parts.
