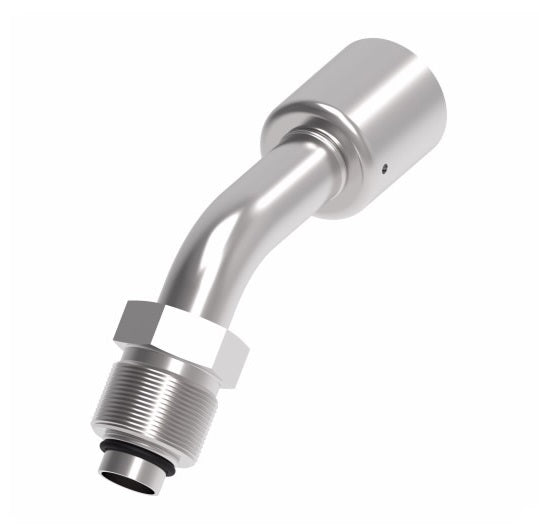

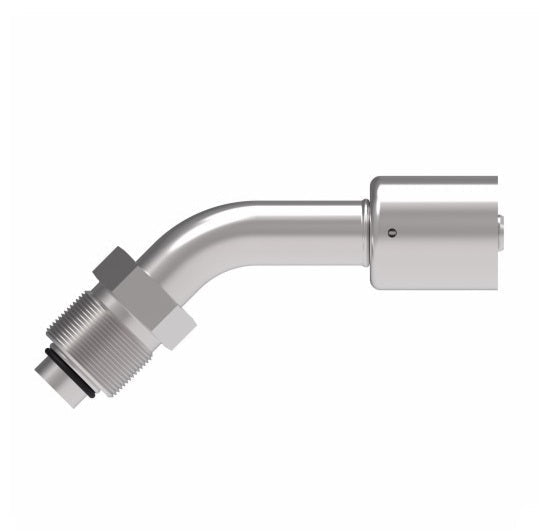

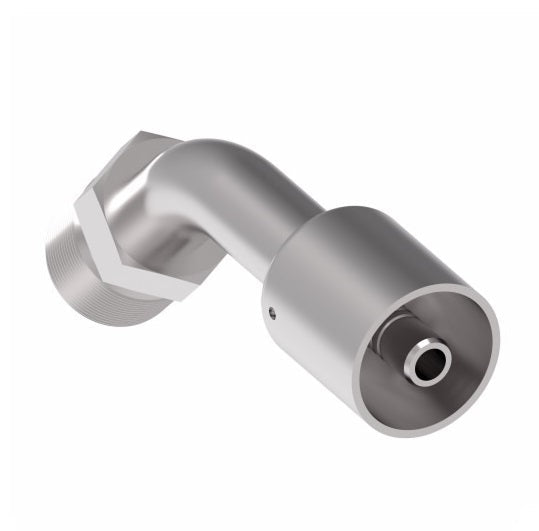

75712E-Z32 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -12 Male Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
75712E-Z32 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -12 Male Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
75712E-Z32 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -12 Male Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
75712E-Z32 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -12 Male Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel

75712E-Z32 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -12 Male Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel

$22.56 - $22.56
$22.56
$22.56 - $22.56
$22.56

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Swivel Tube - 45° Elbow
Specifications for Variant SKU: 75712E-Z32 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 45 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
B		 Hose Cut-Off
Factor		 Hex
F
75706E-Z26 5/16" 3/8" 5/8-18 3.09" 0.88" 1.88" 5/8"
75708E-Z28 13/32" 1/2" 3/4-18 3.59" 1.03" 2.38" 3/4"
75710E-Z30 1/2" 5/8" 7/8-18 3.71" 1.06" 2.50" 7/8"
75712E-Z30 5/8" 5/8" 7/8-18 4.19" 1.19" 2.88" 7/8"
75712E-Z32 5/8" 3/4" 1-1/16-16 4.19" 1.19" 2.88" 1-1/16"

Note: Drawings may differ from actual parts.
