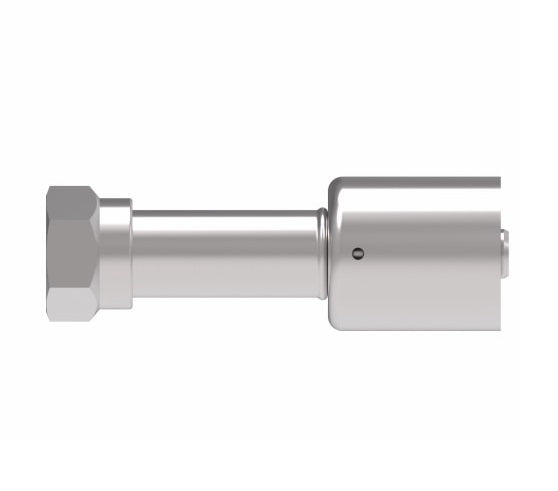

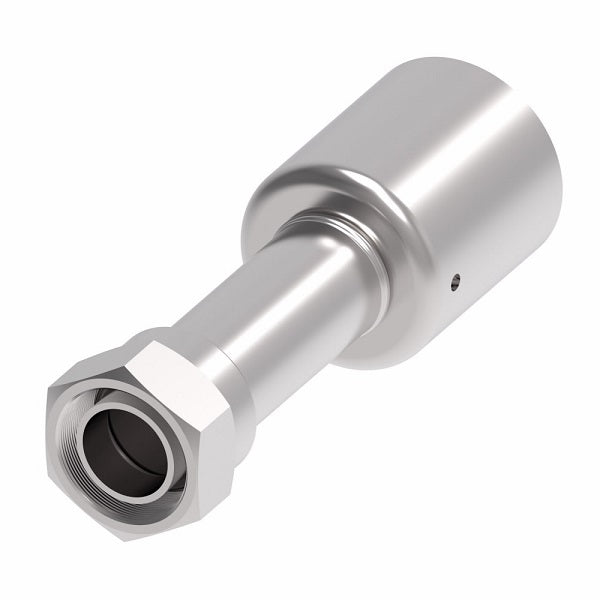

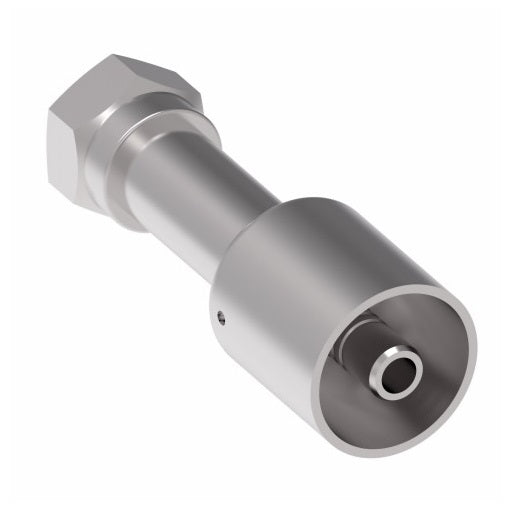

75710E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75710E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75710E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75710E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

75710E-Z51 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -10 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

$19.69 - $19.69
$19.69
$19.69 - $19.69
$19.69

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel - Straight
Specifications for Variant SKU: 75710E-Z51 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F
75706E-Z47 5/16" 3/8" 5/8-18 2.78" 1.38" 1.50" 3/4"
75706E-Z49 5/16" 1/2" 3/4-16 2.90" 1.50" 1.63" 7/8"
75708E-Z49 13/32" 1/2" 3/4-16 3.06" 1.66" 1.75" 7/8"
75708E-Z51 13/32" 5/8" 7/8-14 3.09" 1.69" 1.88" 1-1/16"
75710E-Z51 1/2" 5/8" 7/8-14 3.09" 1.69" 1.88" 1-1/16"
75710E-Z53 1/2" 3/4" 1-1/16-14 3.21" 1.81" 2.00" 1-1/4"
75712E-Z51 5/8" 5/8" 7/8-14 3.31" 1.81" 2.00" 1-1/16"
75712E-Z53 5/8" 3/4" 1-1/16-14 3.31" 1.81" 2.00" 1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
