75710E-Z53 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -12 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75710E-Z53 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -12 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75710E-Z53 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -12 Female Bumped Tube O-Ring x -08 Hose Barb | Steel
75710E-Z53 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -12 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

75710E-Z53 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Crimp Fitting | -12 Female Bumped Tube O-Ring x -08 Hose Barb | Steel

$26.69 - $26.69
$26.69
$26.69 - $26.69
$26.69

Weatherhead by Danfoss

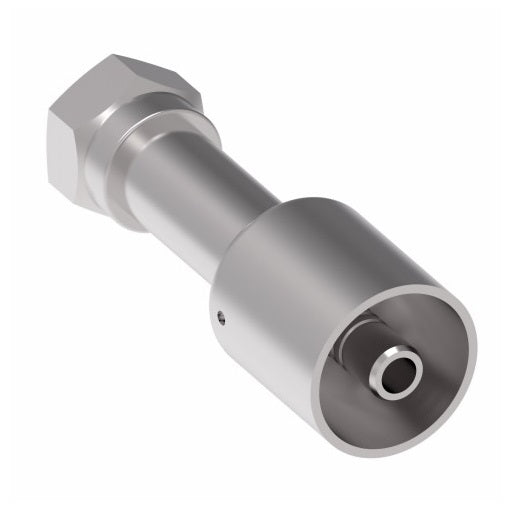

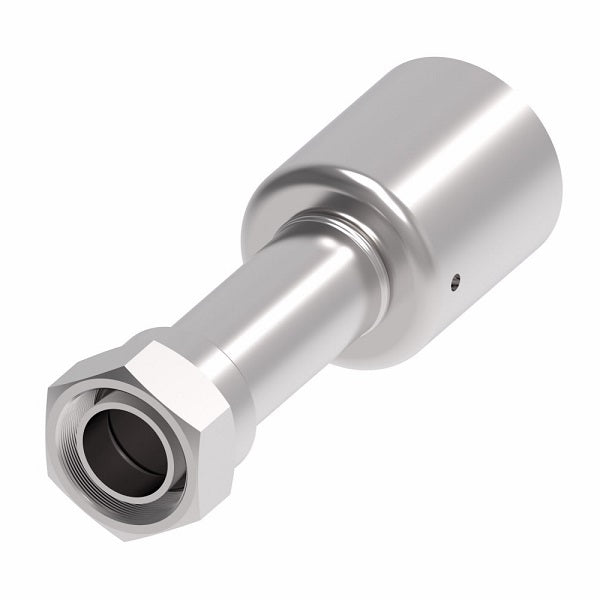

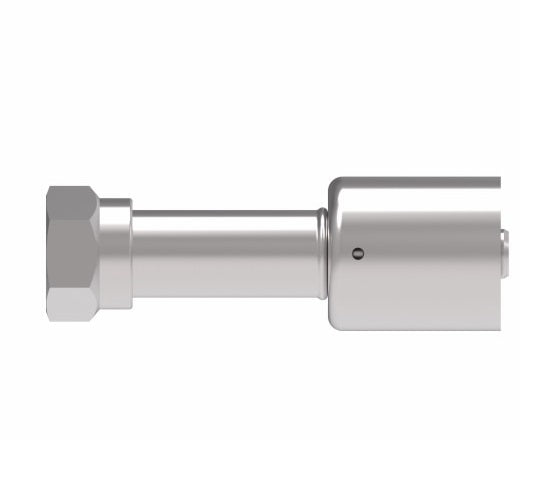

Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel - Straight
Specifications for Variant SKU: 75710E-Z53 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Hose Cut-Off
Factor		 Hex
F
75706E-Z47 5/16" 3/8" 5/8-18 2.78" 1.38" 1.50" 3/4"
75706E-Z49 5/16" 1/2" 3/4-16 2.90" 1.50" 1.63" 7/8"
75708E-Z49 13/32" 1/2" 3/4-16 3.06" 1.66" 1.75" 7/8"
75708E-Z51 13/32" 5/8" 7/8-14 3.09" 1.69" 1.88" 1-1/16"
75710E-Z51 1/2" 5/8" 7/8-14 3.09" 1.69" 1.88" 1-1/16"
75710E-Z53 1/2" 3/4" 1-1/16-14 3.21" 1.81" 2.00" 1-1/4"
75712E-Z51 5/8" 5/8" 7/8-14 3.31" 1.81" 2.00" 1-1/16"
75712E-Z53 5/8" 3/4" 1-1/16-14 3.31" 1.81" 2.00" 1-1/4"

Note: Drawings may differ from actual parts.
