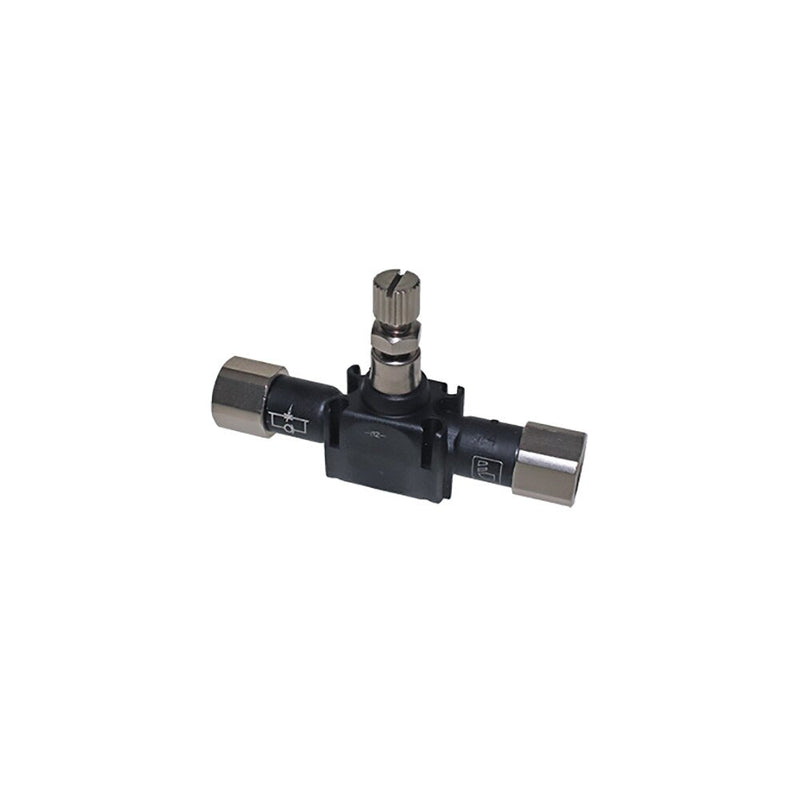

7771 13 13 by Parker | Legris In-Line One-Way Flow Regulator | 1/4" Tube Size | 16mm Hex | 83mm Length | Straight | Polymer

Save $11.05

$47.81

$47.81 - $47.81

$47.81

$36.76

$36.76 - $36.76

$36.76

by Parker Hannifin
Flow Control Regulators:7771 In-Line One-Way Flow Regulator, Female BSPP Thread

Specifications for Variant SKU: 7771 13 13 Parker
Series:	7771 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	F1	H (max)	H (min)	L	L1	N	N1	ØT	Kg
7771 10 10	1/8"	13 mm	8 mm	44.5 mm	39.5 mm	68.5 mm	23 mm	17 mm	11 mm	3.2 mm	.043 Kg
7771 13 13	1/4"	16 mm	11 mm	50 mm	44 mm	83 mm	26 mm	20 mm	12.5 mm	3.2 mm	.103 Kg
7771 17 17	3/8"	19 mm	14 mm	61 mm	52 mm	97 mm	33 mm	26 mm	16 mm	4.2 mm	.160 Kg
7771 21 21	1/2"	24 mm	14 mm	67.5 mm	57.5 mm	121 mm	35 mm	27.5 mm	20 mm	4.2 mm	.260 Kg
