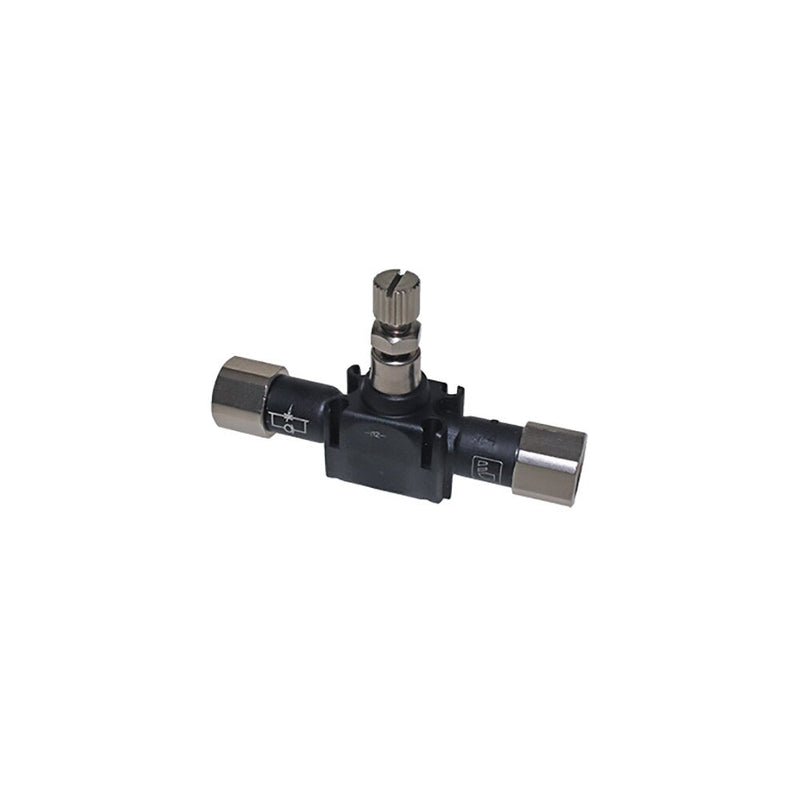

7771 17 17 by Parker | Legris In-Line One-Way Flow Regulator | 3/8" Tube Size | 19mm Hex | 97mm Length | Straight | Polymer

Save $12.15

$61.59

$61.59 - $61.59

$61.59

$49.44

$49.44 - $49.44

$49.44

by Parker Hannifin
Flow Control Regulators:7771 In-Line One-Way Flow Regulator, Female BSPP Thread

Specifications for Variant SKU: 7771 17 17 Parker
Series:	7771 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	F1	H (max)	H (min)	L	L1	N	N1	ØT	Kg
7771 10 10	1/8"	13 mm	8 mm	44.5 mm	39.5 mm	68.5 mm	23 mm	17 mm	11 mm	3.2 mm	.043 Kg
7771 13 13	1/4"	16 mm	11 mm	50 mm	44 mm	83 mm	26 mm	20 mm	12.5 mm	3.2 mm	.103 Kg
7771 17 17	3/8"	19 mm	14 mm	61 mm	52 mm	97 mm	33 mm	26 mm	16 mm	4.2 mm	.160 Kg
7771 21 21	1/2"	24 mm	14 mm	67.5 mm	57.5 mm	121 mm	35 mm	27.5 mm	20 mm	4.2 mm	.260 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
