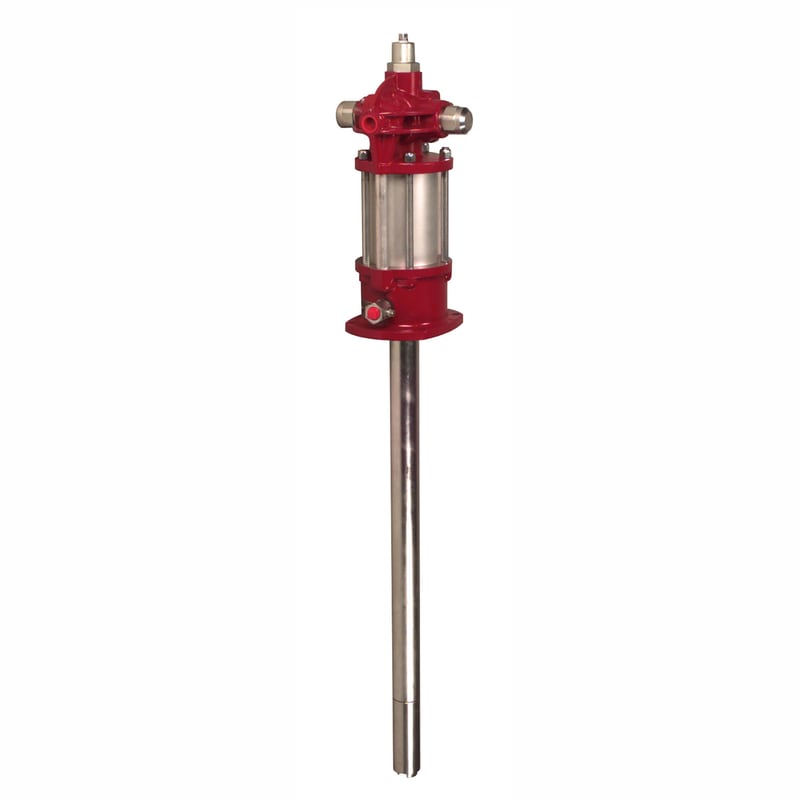

7785-B5 by Alemite | Grease Pump | Pneumatic Industrial | Drum size: 120Lb | Material Outlet: 1/2" Female NPTF | 200 PSI

Save $1,662.02

$5,817.06

$5,817.06 - $5,817.06

$5,817.06

$4,155.04

$4,155.04 - $4,155.04

$4,155.04

PRODUCT DESCRIPTION

Alemite Grease Pumps - Pneumatic Industrial

Specifications for Variant SKU: 7785-B5 Alemite

Applications:
Alemite Grease pumps are designed to handle a wide range of applications, fluid viscosities and system pressures. Combined with Alemite Hose Reels, Dispensing Valves and Meters,Alemite Grease Pumps deliver lubricant from tanks, drums, totes and pails.
Features:
Alemite Industrial Pumps can deliver hard to pump fluids and viscous lubricants up to NLGI #3. Built for continuous duty, these double acting pumps are consistent, reliable, and maintain pressure over long distances. 4-1/4" standard air motor (6" air motor for 7795-A5, 7795-B5, 7736) 7784-A4 is specifically designed for heavy gear oil and lubricants up to NLGI #1 Tote tank pumps designed for horizontal mounting and space constraints Recommended for pumping distances over 100 feet 3/4" NPTF air inlet
Includes:
Air Connector Quick Detach Air Coupler Tote tank pumps include male 3" Cam Lock Adapter for mounting pump to bulk grease container RECOMMENDED ACCESSORIES: Bung Adapter (326750-B1) Air Hose (317811-5)
Recommended Accessories:
Bung Adapter (326750-B1) Air Hose (317811-5)

Part Number	Drum size	Material Outlet	Pump Ratio	Delivery	Follower	Cover	Operating Pressure	Muffler	Material Hose	Weight
7784-A4	400 Lb.	1/2" NPTF(f)	25:1	32 lb./minute	338912	323847-4	200 psi	324170	317882-7	68.6 Lb.
7785-A5	400 Lb.	1/2" NPTF(f)	40:1	22 lb./minute	338912	323847-4	200 psi	324170	317882-7	77 Lb.
7785-B5	120 Lb.	1/2" NPTF(f)	40:1	22 lb./minute	338804	323800-4	200 psi	324170	317882-7	67 Lb.
7786-A5	400 Lb.	1/2" NPTF(f)	75:1	12 lb./minute	338912	323847-4	100 psi	324170	317882-7	69.4 Lb.
7786-C	120 Lb.	1/2" NPTF(f)	75:1	12 lb./minute	338804	323800-4	100 psi	324170	317882-7	66.6 Lb.
7795-A5	400 Lb.	1/2" NPTF(f)	80:1	13 lb./minute	338912	323847-4	100 psi	324170	317882-7	77 Lb.
7795-B5	120 Lb.	1/2" NPTF(f)	80:1	13 lb./minute	338804	323800-4	100 psi	324170	317882-7	74.6 Lb
7735	Bulk	1/2" NPTF(f)	10:1	73 lb./minute	NA	NA	100 psi	324170	317813-5+ 339661	57 Lb.
7736	Bulk	1-¼" NPTF(f)	11:1	86 lb./minute	NA	NA	100 psi	324170	317813-5+ 339661	70 Lb.
7730	Bulk	1/2" NPTF(f)	75:1	12.5 lb./minute	NA	NA	100 psi	324170	317876-5	62 Lb.
