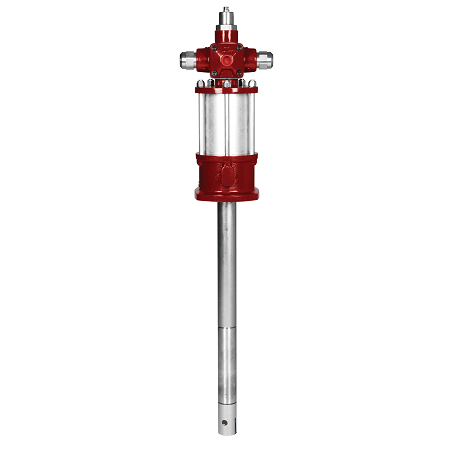

7786-C by Alemite | Grease Pump | Pneumatic Industrial | Drum size: 120Lb | Material Outlet: 1/2" Female NPTF | 100 PSI

7786-C by Alemite | Grease Pump | Pneumatic Industrial | Drum size: 120Lb | Material Outlet: 1/2" Female NPTF | 100 PSI

Save $1,875.98 Save $1,875.98
$6,565.93
$6,565.93 - $6,565.93
$6,565.93
$4,689.95
$4,689.95 - $4,689.95
$4,689.95

PRODUCT DESCRIPTION

Alemite Grease Pumps - Pneumatic Industrial
Specifications for Variant SKU: 7786-C Alemite
Applications:
  • Alemite Grease pumps are designed to handle a wide range of applications, fluid viscosities and system pressures. Combined with Alemite Hose Reels, Dispensing Valves and Meters,Alemite Grease Pumps deliver lubricant from tanks, drums, totes and pails.
Features:
  • Alemite Industrial Pumps can deliver hard to pump fluids and viscous lubricants up to NLGI #3. Built for continuous duty, these double acting pumps are consistent, reliable, and maintain pressure over long distances.
  • 4-1/4" standard air motor (6" air motor for 7795-A5, 7795-B5, 7736)
  • 7784-A4 is specifically designed for heavy gear oil and lubricants up to NLGI #1
  • Tote tank pumps designed for horizontal mounting and space constraints
  • Recommended for pumping distances over 100 feet
  • 3/4" NPTF air inlet
Includes:
  • Air Connector
  • Quick Detach Air Coupler
  • Tote tank pumps include male 3" Cam Lock Adapter for mounting pump to bulk grease container
  • RECOMMENDED ACCESSORIES:
  • Bung Adapter (326750-B1)
  • Air Hose (317811-5)
Recommended Accessories:
  • Bung Adapter (326750-B1)
  • Air Hose (317811-5)

Part Number Drum size Material Outlet Pump Ratio Delivery Follower Cover Operating Pressure Muffler Material Hose Weight
7784-A4 400 Lb. 1/2" NPTF(f) 25:1 32 lb./minute 338912 323847-4 200 psi 324170 317882-7 68.6 Lb.
7785-A5 400 Lb. 1/2" NPTF(f) 40:1 22 lb./minute 338912 323847-4 200 psi 324170 317882-7 77 Lb.
7785-B5 120 Lb. 1/2" NPTF(f) 40:1 22 lb./minute 338804 323800-4 200 psi 324170 317882-7 67 Lb.
7786-A5 400 Lb. 1/2" NPTF(f) 75:1 12 lb./minute 338912 323847-4 100 psi 324170 317882-7 69.4 Lb.
7786-C 120 Lb. 1/2" NPTF(f) 75:1 12 lb./minute 338804 323800-4 100 psi 324170 317882-7 66.6 Lb.
7795-A5 400 Lb. 1/2" NPTF(f) 80:1 13 lb./minute 338912 323847-4 100 psi 324170 317882-7 77 Lb.
7795-B5 120 Lb. 1/2" NPTF(f) 80:1 13 lb./minute 338804 323800-4 100 psi 324170 317882-7 74.6 Lb
7735 Bulk 1/2" NPTF(f) 10:1 73 lb./minute NA NA 100 psi 324170 317813-5+ 339661 57 Lb.
7736 Bulk 1-¼" NPTF(f) 11:1 86 lb./minute NA NA 100 psi 324170 317813-5+ 339661 70 Lb.
7730 Bulk 1/2" NPTF(f) 75:1 12.5 lb./minute NA NA 100 psi 324170 317876-5 62 Lb.
