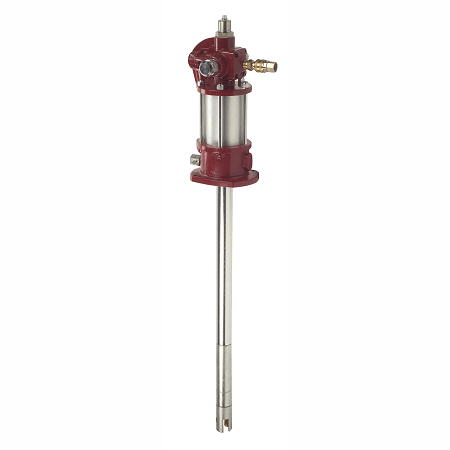

7785-A5 by Alemite | Grease Pump | Pneumatic Industrial | Drum size: 400Lb | Material Outlet: 1/2" Female NPTF | 200 PSI

7785-A5 by Alemite | Grease Pump | Pneumatic Industrial | Drum size: 400Lb | Material Outlet: 1/2" Female NPTF | 200 PSI

Save $1,804.92 Save $1,804.92
$6,317.21
$6,317.21 - $6,317.21
$6,317.21
$4,512.29
$4,512.29 - $4,512.29
$4,512.29

PRODUCT DESCRIPTION

Alemite Grease Pumps - Pneumatic Industrial
Specifications for Variant SKU: 7785-A5 Alemite
Applications:
  • Alemite Grease pumps are designed to handle a wide range of applications, fluid viscosities and system pressures. Combined with Alemite Hose Reels, Dispensing Valves and Meters,Alemite Grease Pumps deliver lubricant from tanks, drums, totes and pails.
Features:
  • Alemite Industrial Pumps can deliver hard to pump fluids and viscous lubricants up to NLGI #3. Built for continuous duty, these double acting pumps are consistent, reliable, and maintain pressure over long distances.
  • 4-1/4" standard air motor (6" air motor for 7795-A5, 7795-B5, 7736)
  • 7784-A4 is specifically designed for heavy gear oil and lubricants up to NLGI #1
  • Tote tank pumps designed for horizontal mounting and space constraints
  • Recommended for pumping distances over 100 feet
  • 3/4" NPTF air inlet
Includes:
  • Air Connector
  • Quick Detach Air Coupler
  • Tote tank pumps include male 3" Cam Lock Adapter for mounting pump to bulk grease container
  • RECOMMENDED ACCESSORIES:
  • Bung Adapter (326750-B1)
  • Air Hose (317811-5)
Recommended Accessories:
  • Bung Adapter (326750-B1)
  • Air Hose (317811-5)

Part Number Drum size Material Outlet Pump Ratio Delivery Follower Cover Operating Pressure Muffler Material Hose Weight
7784-A4 400 Lb. 1/2" NPTF(f) 25:1 32 lb./minute 338912 323847-4 200 psi 324170 317882-7 68.6 Lb.
7785-A5 400 Lb. 1/2" NPTF(f) 40:1 22 lb./minute 338912 323847-4 200 psi 324170 317882-7 77 Lb.
7785-B5 120 Lb. 1/2" NPTF(f) 40:1 22 lb./minute 338804 323800-4 200 psi 324170 317882-7 67 Lb.
7786-A5 400 Lb. 1/2" NPTF(f) 75:1 12 lb./minute 338912 323847-4 100 psi 324170 317882-7 69.4 Lb.
7786-C 120 Lb. 1/2" NPTF(f) 75:1 12 lb./minute 338804 323800-4 100 psi 324170 317882-7 66.6 Lb.
7795-A5 400 Lb. 1/2" NPTF(f) 80:1 13 lb./minute 338912 323847-4 100 psi 324170 317882-7 77 Lb.
7795-B5 120 Lb. 1/2" NPTF(f) 80:1 13 lb./minute 338804 323800-4 100 psi 324170 317882-7 74.6 Lb
7735 Bulk 1/2" NPTF(f) 10:1 73 lb./minute NA NA 100 psi 324170 317813-5+ 339661 57 Lb.
7736 Bulk 1-¼" NPTF(f) 11:1 86 lb./minute NA NA 100 psi 324170 317813-5+ 339661 70 Lb.
7730 Bulk 1/2" NPTF(f) 75:1 12.5 lb./minute NA NA 100 psi 324170 317876-5 62 Lb.

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
