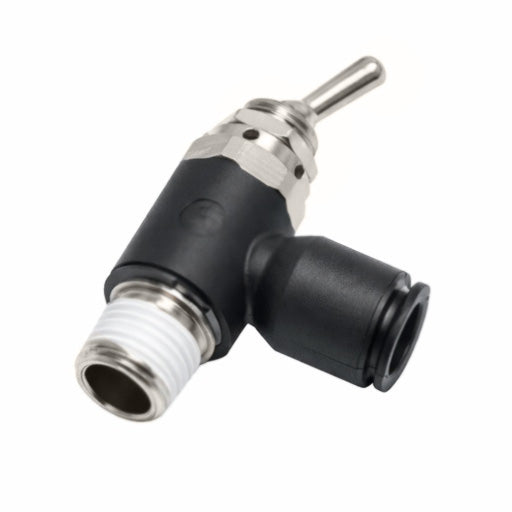

7805 56 14 by Parker | Manually Operated 3-Way Venting Valve (Supply 1) | 1/4" Tube Size x 1/4" Male NPT Thread | 1.99" Length | 90° Elbow | Glass-Reinforced Nylon

7805 56 14 by Parker | Manually Operated 3-Way Venting Valve (Supply 1) | 1/4" Tube Size x 1/4" Male NPT Thread | 1.99" Length | 90° Elbow | Glass-Reinforced Nylon

Save $12.41 Save $12.41
$81.21
$81.21 - $81.21
$81.21
$68.80
$68.80 - $68.80
$68.80

by Parker Hannifin
Manually-Operated Valves:7805/7806 Manually Operated 3-Way Venting Valve Fractional Inch Tube to NPT
Specifications for Variant SKU: 7805 56 14 Parker
Series: 7805 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Nickel-Plated Brass
Special Properties: Silicone Free, Valved
Product Features:
  • Downstream control supply provided by simply moving the lever
  • 2 models available to provide the best solution for the system:
    3/2: opening, closing, venting
  • Compact and ergonomic (can be positioned through 360°)
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Industrial
  • Pulp & Paper
Applications:
  • Robotics
  • Conveyors
  • Textile
  • Plastics Engineering
  • Printing
  • Pneumatics
  • Packaging
Compatible Fluids: Compressed air
Working Pressure: 230 psi (15.8 bar)
Working Temperature: >15° to 175° F (-10° to 80° C)
Part Number Supply (1) D C (NPT) F1 F2 H H1 H2 H3 L L1 T W OZ
7805 04 11 5/32" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .75" .43" .49" .95
7805 56 11 1/4" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .85" .43" .49" 1.02
7805 56 14 1/4" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" .89" .43" .49" 1.55
7805 60 14 3/8" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" 1.14" .43" .49" 1.69
Part Number Supply (2) D C (NPT) F1 F2 H H1 H2 H3 L L1 T W OZ
7806 04 11 5/32" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .75" .43" .49" .95
7806 56 11 1/4" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .85" .43" .49" 1.02
7806 56 14 1/4" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" .89" .43" .49" 1.55
7806 60 14 3/8" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" 1.14" .43" .49" 1.69

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
