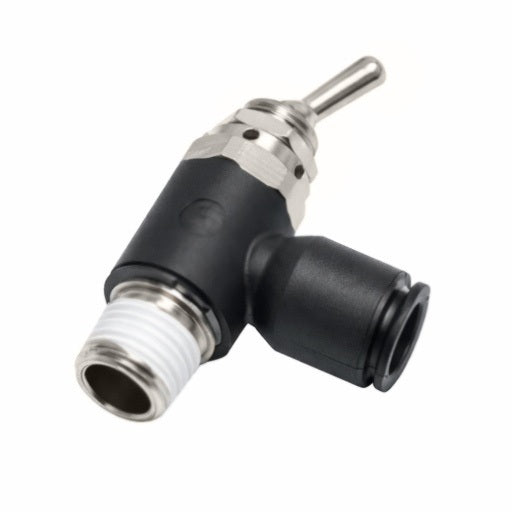

7806 56 14 by Parker | Manually Operated 3-Way Venting Valve (Supply 2) | 1/4" Tube Size x 1/4" Male NPT Thread | 1.99" Length | 90° Elbow | Glass-Reinforced Nylon

7806 56 14 by Parker | Manually Operated 3-Way Venting Valve (Supply 2) | 1/4" Tube Size x 1/4" Male NPT Thread | 1.99" Length | 90° Elbow | Glass-Reinforced Nylon

Save $5.48 Save $5.48
$75.79
$75.79 - $75.79
$75.79
$70.31
$70.31 - $70.31
$70.31

by Parker Hannifin
Manually-Operated Valves:7805/7806 Manually Operated 3-Way Venting Valve Fractional Inch Tube to NPT
Specifications for Variant SKU: 7806 56 14 Parker
Series: 7806 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Nickel-Plated Brass
Special Properties: Silicone Free, Valved
Product Features:
  • Downstream control supply provided by simply moving the lever
  • 2 models available to provide the best solution for the system:
    3/2: opening, closing, venting
  • Compact and ergonomic (can be positioned through 360°)
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Industrial
  • Pulp & Paper
Applications:
  • Robotics
  • Conveyors
  • Textile
  • Plastics Engineering
  • Printing
  • Pneumatics
  • Packaging
Compatible Fluids: Compressed air
Working Pressure: 230 psi (15.8 bar)
Working Temperature: >15° to 175° F (-10° to 80° C)
Part Number Supply (1) D C (NPT) F1 F2 H H1 H2 H3 L L1 T W OZ
7805 04 11 5/32" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .75" .43" .49" .95
7805 56 11 1/4" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .85" .43" .49" 1.02
7805 56 14 1/4" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" .89" .43" .49" 1.55
7805 60 14 3/8" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" 1.14" .43" .49" 1.69
Part Number Supply (2) D C (NPT) F1 F2 H H1 H2 H3 L L1 T W OZ
7806 04 11 5/32" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .75" .43" .49" .95
7806 56 11 1/4" 1/8" 14 mm 14 mm 1.69" .98" .18" .30" .85" .43" .49" 1.02
7806 56 14 1/4" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" .89" .43" .49" 1.55
7806 60 14 3/8" 1/4" 14 mm 17 mm 1.99" .98" .18" .30" 1.14" .43" .49" 1.69
