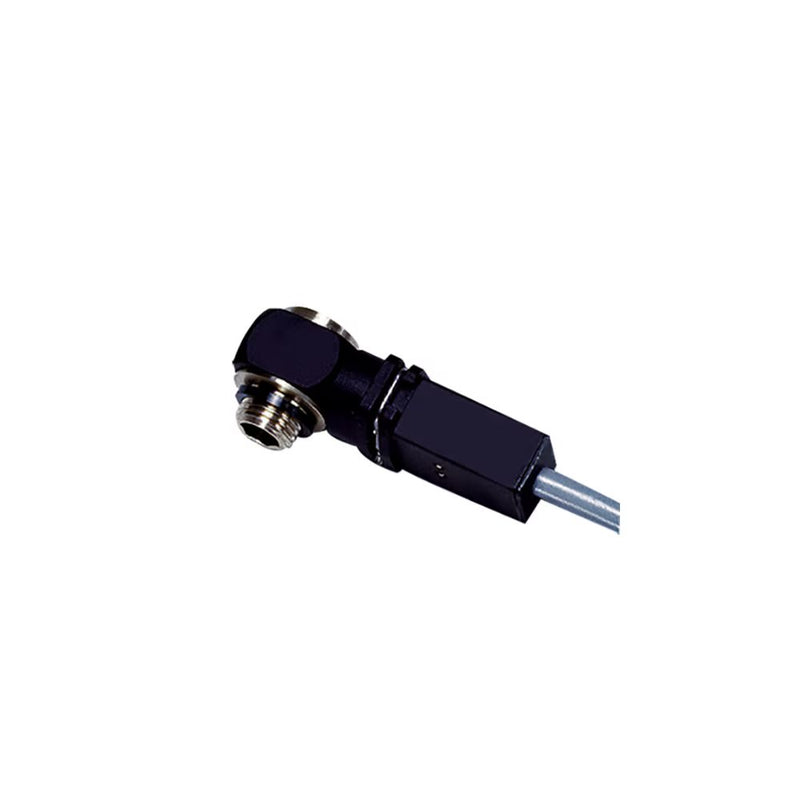

7828 00 10 by Parker | Legris Pneumatic/Electric Sensor | 1/8" Male/Female BSPP Thread | 6 mm Hex | 60 Length | Straight | Polymer

7828 00 10 by Parker | Legris Pneumatic/Electric Sensor | 1/8" Male/Female BSPP Thread | 6 mm Hex | 60 Length | Straight | Polymer

Save $85.87 Save $85.87
$214.67
$214.67 - $214.67
$214.67
$128.80
$128.80 - $128.80
$128.80

by Parker Hannifin
Sensor Fittings:7828 Pneumatic/Electric Sensor, Male/Female BSPP and Metric Thread
Specifications for Variant SKU: 7828 00 10 Parker
Series: 7828 series
Shape (Orientation): Straight
Material(s): Polymer, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 3 to 8 bar
  • Working Temperature: -15°C to +60°C
  • Back Pressure: -15°C to +60°C
  • Switching Time: -15°C to +60°C
  • Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:
  • Lockable adjustment possible of the setpoint
  • Output pressure adjustment options marked on the screw
  • Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit
  • Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Screw: Brass
  • Seal: NBR
Part Number C F H H1 J L L1 Kg
7828 00 19 M5x0.8 8 mm 20 mm 10 mm 11 mm 49 mm 5.5 mm .116 Kg
7828 00 10 1/8" 6 mm 20 mm 10 mm 16 mm 52 mm 8 mm .132 Kg
7828 00 13 1/4" 8 mm 20 mm 10 mm 21 mm 54 mm 10.5 mm .142 Kg
7828 00 17 3/8" 10 mm 22 mm 12 mm 28 mm 57 mm 14 mm .171 Kg
