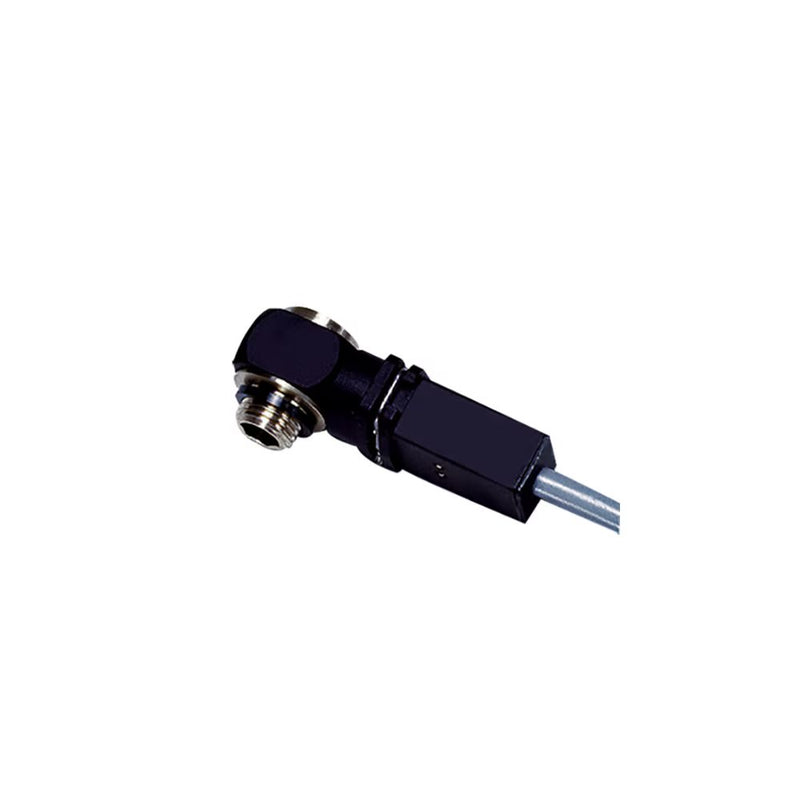

7828 00 19 by Parker | Legris Pneumatic/Electric Sensor | M5x0.8 Male/Female M5 Metric Thread | 8 mm Hex | 54.5 Length | Straight | Polymer

Save $91.31

$228.28

$228.28 - $228.28

$228.28

$136.97

$136.97 - $136.97

$136.97

by Parker Hannifin
Sensor Fittings:7828 Pneumatic/Electric Sensor, Male/Female BSPP and Metric Thread

Specifications for Variant SKU: 7828 00 19 Parker
Series:	7828 series
Shape (Orientation):	Straight
Material(s):	Polymer, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 3 to 8 bar Working Temperature: -15°C to +60°C Back Pressure: -15°C to +60°C Switching Time: -15°C to +60°C Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:	Lockable adjustment possible of the setpoint Output pressure adjustment options marked on the screw Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:	RoHS PED REACH
Component Materials:	Body: Technical polymer Screw: Brass Seal: NBR


Part Number	C	F	H	H1	J	L	L1	Kg
7828 00 19	M5x0.8	8 mm	20 mm	10 mm	11 mm	49 mm	5.5 mm	.116 Kg
7828 00 10	1/8"	6 mm	20 mm	10 mm	16 mm	52 mm	8 mm	.132 Kg
7828 00 13	1/4"	8 mm	20 mm	10 mm	21 mm	54 mm	10.5 mm	.142 Kg
7828 00 17	3/8"	10 mm	22 mm	12 mm	28 mm	57 mm	14 mm	.171 Kg
