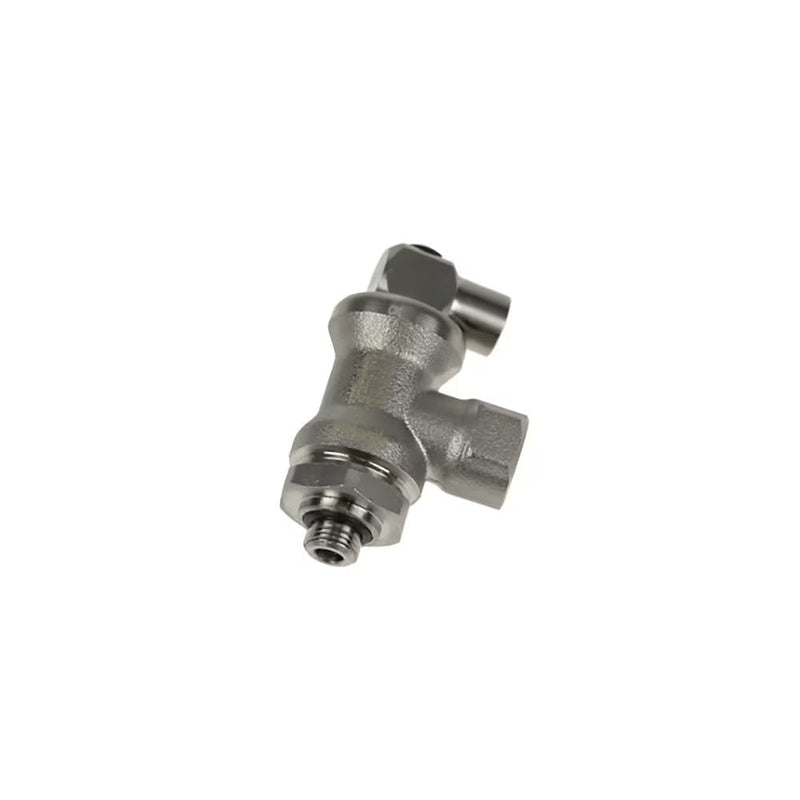

7881 13 10 by Parker | Legris Blocking Fitting | 1/8" Male BSPP Thread x 1/8" Female BSPP Thread | 21 mm Hex | 58.5 mm Length | Multi-Directional | Nickel-Plated Brass

7881 13 10 by Parker | Legris Blocking Fitting | 1/8" Male BSPP Thread x 1/8" Female BSPP Thread | 21 mm Hex | 58.5 mm Length | Multi-Directional | Nickel-Plated Brass

Save $12.08 Save $12.08
$166.07
$166.07 - $166.07
$166.07
$153.99
$153.99 - $153.99
$153.99

by Parker Hannifin
Blocking Fitting:7881 Blocking Fitting, Male/Female BSPP Thread
Specifications for Variant SKU: 7881 13 10 Parker
Series: 7881 Series
Shape (Orientation): Multi-Directional
Material(s): Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Spark Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -20°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
  • Mounted in pairs on a cylinder
  • Compact size to fit into any configuration
  • Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973)
  • Can be rotated 360° during assembly
  • Spark resistance, for welding applications
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d >110 millions of cycles
Component Materials:
  • Body: Nickel-plated brass
  • Release buttons: Polymer
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Adapter: Nickel-plated brass
  • Silicone-free
Part Number C1 C2 E F G H H1 H2 J L Kg
7881 13 10 1/8" 1/4" 5.5 mm 21 mm 24 mm 53 mm 24.5 mm 21 mm 17 mm 25.5 mm .119 Kg
7881 13 13 1/4" 1/4" 6.5 mm 21 mm 24 mm 53 mm 24.5 mm 21 mm 17 mm 25.5 mm .120 Kg
7881 17 17 3/8" 3/8" 7.5 mm 24 mm 28 mm 58 mm 25 mm 25 mm 27 mm 34 mm .208 Kg
7881 21 21 1/2" 1/2" 9 mm 24 mm 28 mm 58 mm 25 mm 25 mm 27 mm 40 mm .221 Kg
