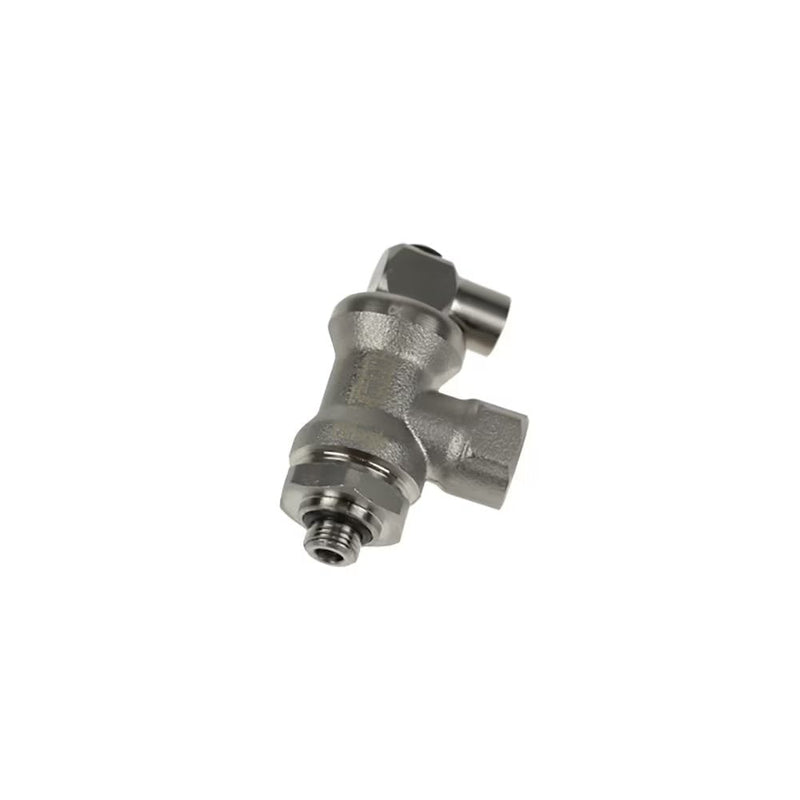

7881 17 17 by Parker | Legris Blocking Fitting | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 24 mm Hex | 65.5 mm Length | Multi-Directional | Nickel-Plated Brass

Save $180.50

$451.25

$451.25 - $451.25

$451.25

$270.75

$270.75 - $270.75

$270.75

by Parker Hannifin
Blocking Fitting:7881 Blocking Fitting, Male/Female BSPP Thread

Specifications for Variant SKU: 7881 17 17 Parker
Series:	7881 Series
Shape (Orientation):	Multi-Directional
Material(s):	Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Spark Resistance

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar Working Temperature: -20°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Mounted in pairs on a cylinder Compact size to fit into any configuration Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973) Can be rotated 360° during assembly Spark resistance, for welding applications
Regulations:	RoHS REACH PED B10d >110 millions of cycles
Component Materials:	Body: Nickel-plated brass Release buttons: Polymer Seals: NBR Gripping ring: Stainless Steel Adapter: Nickel-plated brass Silicone-free


Part Number	C1	C2	E	F	G	H	H1	H2	J	L	Kg
7881 13 10	1/8"	1/4"	5.5 mm	21 mm	24 mm	53 mm	24.5 mm	21 mm	17 mm	25.5 mm	.119 Kg
7881 13 13	1/4"	1/4"	6.5 mm	21 mm	24 mm	53 mm	24.5 mm	21 mm	17 mm	25.5 mm	.120 Kg
7881 17 17	3/8"	3/8"	7.5 mm	24 mm	28 mm	58 mm	25 mm	25 mm	27 mm	34 mm	.208 Kg
7881 21 21	1/2"	1/2"	9 mm	24 mm	28 mm	58 mm	25 mm	25 mm	27 mm	40 mm	.221 Kg
