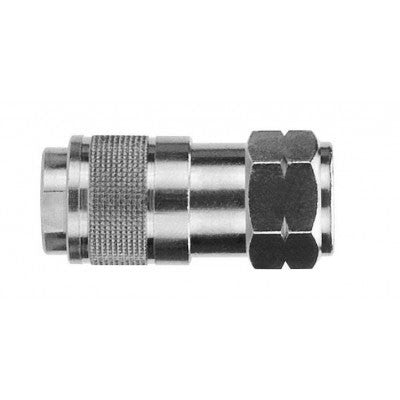

80212-02 AIGNEP | QC Series | 1/4" Mignon Plug x 1/8" Female NPTF

80212-02 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/8" Female NPTF

Name: 80212-02 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/8" Female NPTF
Brand: AIGNEP
SKU: 80212-02 AIGNEP
Price: 1.07 USD
Availability: InStock

Save $1.09

$2.16

$2.16 - $2.16

$2.16

$1.07

$1.07 - $1.07

$1.07

Specifications for Variant SKU: 80212-02 AIGNEP
Series:	QC Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

AC Mini Female Plug (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Seal	Thread Type	A	B (IN)	B	CH	C
80212-02	NBR 70	NPTF	1/8"	0.374"	9.5 mm	14 mm	27 mm
80212-04	NBR 70	NPTF	1/4"	0.531"	13.5 mm	17 mm	31 mm
80212-06	NBR 70	NPTF	3/8"	0.531"	13.5 mm	20 mm	31 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
