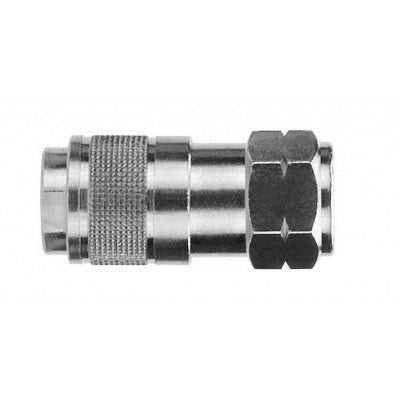

80212-04 AIGNEP | QC Series | 1/4" Mignon Plug x 1/4" Female NPTF
80212-04 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/4" Female NPTF
80212-04 AIGNEP | QC Series | 1/4" Mignon Plug x 1/4" Female NPTF

80212-04 by AIGNEP | QC Series | 1/4" Mignon Plug x 1/4" Female NPTF

Save $1.32 Save $1.32
$2.60
$2.60 - $2.60
$2.60
$1.28
$1.28 - $1.28
$1.28
Specifications for Variant SKU: 80212-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass

AC Mini Female Plug (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C
80212-02 NBR 70 NPTF 1/8" 0.374" 9.5 mm 14 mm 27 mm
80212-04 NBR 70 NPTF 1/4" 0.531" 13.5 mm 17 mm 31 mm
80212-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 20 mm 31 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
