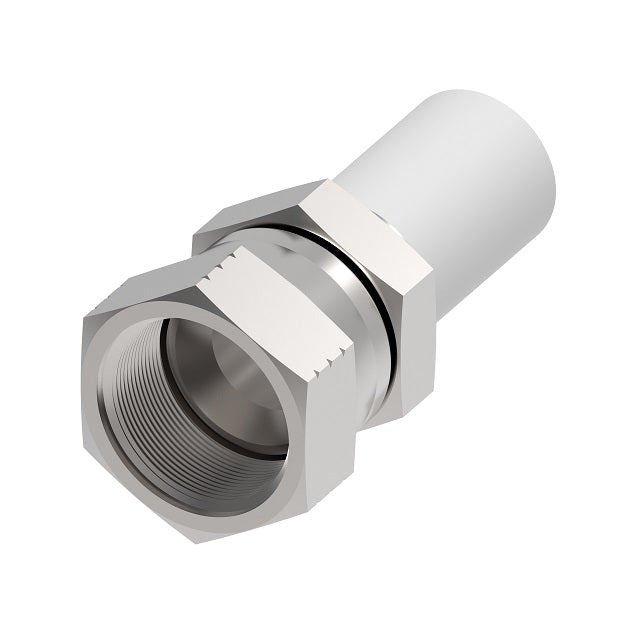

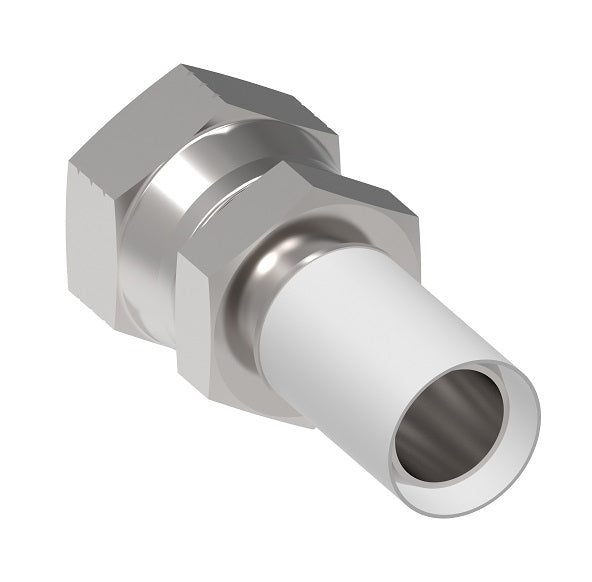

820016-16-CZ by Danfoss | Conv-O-Crimp | JIC 37° Swivel Inserts with PTFE Sleeves Installed (Insert Only) | -16 Male Pipe x -16 Hose Barb | Carbon Steel
820016-16-CZ by Danfoss | Conv-O-Crimp | JIC 37° Swivel Inserts with PTFE Sleeves Installed (Insert Only) | -16 Male Pipe x -16 Hose Barb | Carbon Steel
820016-16-CZ by Danfoss | Conv-O-Crimp | JIC 37° Swivel Inserts with PTFE Sleeves Installed (Insert Only) | -16 Male Pipe x -16 Hose Barb | Carbon Steel
820016-16-CZ by Danfoss | Conv-O-Crimp | JIC 37° Swivel Inserts with PTFE Sleeves Installed (Insert Only) | -16 Male Pipe x -16 Hose Barb | Carbon Steel

820016-16-CZ by Danfoss | Conv-O-Crimp | JIC 37° Swivel Inserts with PTFE Sleeves Installed (Insert Only) | -16 Male Pipe x -16 Hose Barb | Carbon Steel

$58.84 - $58.84
$58.84
$58.84 - $58.84
$58.84

Conv-O-Crimp by Danfoss
Crimp Fitting for Everflex Hose - 37° JIC Swivel Insert with PTFE Sleeves Installed - Straight
Specifications for Variant SKU: 820016-16-CZ Danfoss
Ends Configuration: 1in Male NPT, 1in Hose Barb
Material(s): Carbon Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: Conv-O-Crimp Series
About:
  • The unique Everflex Conv-O-Crimp hose end are shipped with factory-installed Teflon™ fluoropolymer sleeves on the insert. This eliminates the time consuming, costly and subjective step of wrapping the hose end with Teflon™ fluoropolymer tape before assembly. The end result is a hose assembly system that is second to none in ease of assembly fabrication.
WARNING:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Compatible Hose:
  • Conv-O-Crimp Hose
Part Number
Insert Only
Carbon Steel		 Part Number
Insert Only
316 Stainless Steel		 Part Number
Collar Only
Carbon Steel		 Part Number
Collar Only
304 Stainless steel		 Hose Size
820008-8-CZ 820008-8-316 870000-8-CZ 870000-8-304 -08
820012-12-CZ - 870000-12-CZ 870000-12-304 -12
820016-16-CZ 820016-16-316 870000-16-CZ 870000-16-304 -16
820020-20-CZ - 870000-20-CZ 870000-20-304 -20
820024-24-CZ 820024-24-316 870000-24-CZ 870000-24-304 -24
820032-32-CZ - 870000-32-CZ 870000-32-304 -32

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
