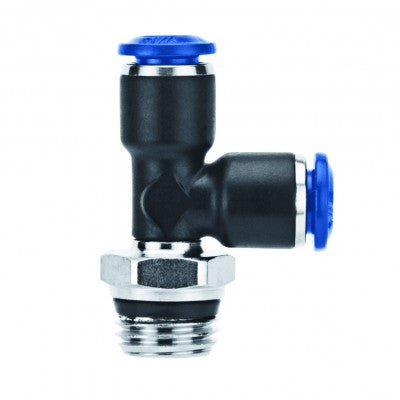

85222-02-02 AIGNEP | 85 Series | Swivel Run Tee Composite | 1/8" Tube x 1/8" Swift-Fit Male | Pack of 10
85222-02-02 by AIGNEP | 85 Series | Swivel Run Composite | 1/8" Tube x 1/8" Swift-Fit Male | Tee | Pack of 10
85222-02-02 AIGNEP | 85 Series | Swivel Run Tee Composite | 1/8" Tube x 1/8" Swift-Fit Male | Pack of 10

85222-02-02 by AIGNEP | 85 Series | Swivel Run Composite | 1/8" Tube x 1/8" Swift-Fit Male | Tee | Pack of 10

Save $14.08 Save $14.08
$35.20
$35.20 - $35.20
$35.20
$21.12
$21.12 - $21.12
$21.12

Package Quantity: 10 ea

Specifications for Variant SKU: 85222-02-02 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Tee
Ends Configuration: 1/8in Push-to-Connect, 1/8in Male Swift-Fit, 1/8in Push-to-Connect, Some Ends Match
Material(s): Nylon
Seal Material(s): NBR 70

Swivel Run Tee Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L1 L2 D
85222-02-02 1/8" 1/8" 0.216" 5.5 mm 15.5 mm 18 mm 10 mm
85222-02-04 1/8" 1/4" 0.275" 7 mm 15.5 mm 19.5 mm 10 mm
85222-53-32 5/32" 10-32 0.157" 4 mm 16.5 mm 16 mm 10 mm
85222-53-02 5/32" 1/8" 0.216" 5.5 mm 14 mm 18 mm 10 mm
85222-53-04 5/32" 1/4" 0.275" 7 mm 14 mm 19.5 mm 10 mm
85222-04-32 1/4" 10-32 0.157" 4 mm 20.5 mm 14.5 mm 12.5 mm
85222-04-02 1/4" 1/8" 0.216" 5.5 mm 20.5 mm 17.5 mm 12.5 mm
85222-04-04 1/4" 1/4" 0.275" 7 mm 20.5 mm 19 mm 12.5 mm
85222-05-02 5/16" 1/8" 0.216" 5.5 mm 22 mm 19 mm 14 mm
85222-05-04 5/16" 1/4" 0.275" 7 mm 22 mm 20.5 mm 14 mm
85222-05-06 5/16" 3/8" 0.295" 7.5 mm 22 mm 21 mm 14 mm
85222-06-04 3/8" 1/4" 0.275" 7 mm 26.5 mm 22 mm 17 mm
85222-06-06 3/8" 3/8" 0.295" 7.5 mm 26.5 mm 22 mm 17 mm
85222-06-08 3/8" 1/2" 0.354" 9 mm 26.5 mm 24.5 mm 17 mm
85222-08-04 1/2" 1/4" 0.275" 7 mm 30.5 mm 23 mm 20 mm
85222-08-06 1/2" 3/8" 0.295" 7.5 mm 30.5 mm 23 mm 20 mm
85222-08-08 1/2" 1/2" 0.354" 9 mm 30.5 mm 25.5 mm 20 mm
