85222-05-06 AIGNEP | 85 Series | Swivel Run Tee Composite | 5/16" Tube x 3/8" Swift-Fit Male | Pack of 10

85222-05-06 by AIGNEP | 85 Series | Swivel Run Composite | 5/16" Tube x 3/8" Swift-Fit Male | Tee | Pack of 10

Save $0.26

$25.19

$25.19 - $25.19

$25.19

$24.93

$24.93 - $24.93

$24.93

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85222-05-06 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Tee
Ends Configuration:	5/16in Push-to-Connect, 3/8in Male Swift-Fit, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	NBR 70

Swivel Run Tee Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

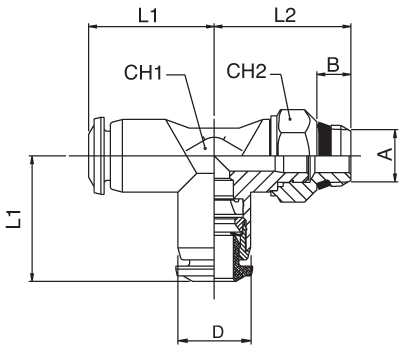

Product Number	Tube	A	B (IN)	B	L1	L2	D
85222-02-02	1/8"	1/8"	0.216"	5.5 mm	15.5 mm	18 mm	10 mm
85222-02-04	1/8"	1/4"	0.275"	7 mm	15.5 mm	19.5 mm	10 mm
85222-53-32	5/32"	10-32	0.157"	4 mm	16.5 mm	16 mm	10 mm
85222-53-02	5/32"	1/8"	0.216"	5.5 mm	14 mm	18 mm	10 mm
85222-53-04	5/32"	1/4"	0.275"	7 mm	14 mm	19.5 mm	10 mm
85222-04-32	1/4"	10-32	0.157"	4 mm	20.5 mm	14.5 mm	12.5 mm
85222-04-02	1/4"	1/8"	0.216"	5.5 mm	20.5 mm	17.5 mm	12.5 mm
85222-04-04	1/4"	1/4"	0.275"	7 mm	20.5 mm	19 mm	12.5 mm
85222-05-02	5/16"	1/8"	0.216"	5.5 mm	22 mm	19 mm	14 mm
85222-05-04	5/16"	1/4"	0.275"	7 mm	22 mm	20.5 mm	14 mm
85222-05-06	5/16"	3/8"	0.295"	7.5 mm	22 mm	21 mm	14 mm
85222-06-04	3/8"	1/4"	0.275"	7 mm	26.5 mm	22 mm	17 mm
85222-06-06	3/8"	3/8"	0.295"	7.5 mm	26.5 mm	22 mm	17 mm
85222-06-08	3/8"	1/2"	0.354"	9 mm	26.5 mm	24.5 mm	17 mm
85222-08-04	1/2"	1/4"	0.275"	7 mm	30.5 mm	23 mm	20 mm
85222-08-06	1/2"	3/8"	0.295"	7.5 mm	30.5 mm	23 mm	20 mm
85222-08-08	1/2"	1/2"	0.354"	9 mm	30.5 mm	25.5 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
