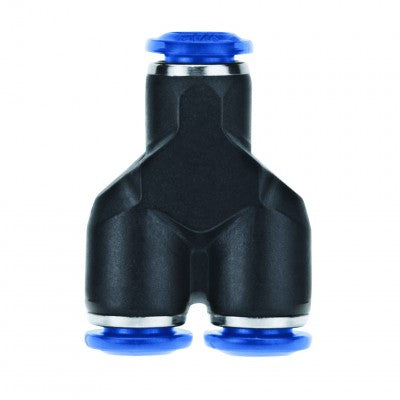

85310-05 AIGNEP | 85 Series | Union Y | 5/16" x (2) 5/16" Tube | Pack of 10

85310-05 by AIGNEP | 85 Series | Union | 5/16" x (2) 5/16" Tube | Y | Pack of 10

Save $15.25

$38.13

$38.13 - $38.13

$38.13

$22.88

$22.88 - $22.88

$22.88

Package Quantity: 10 ea

Specifications for Variant SKU: 85310-05 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Y
Ends Configuration:	5/16in Push-to-Connect, 5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nylon

Union Y Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

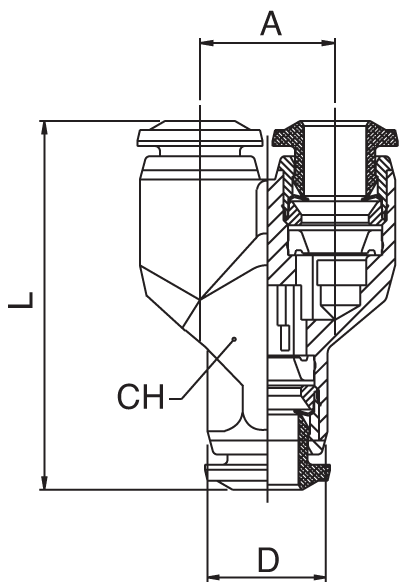

Product Number	Tube	A	L	CH	D
85310-53	5/32"	11 mm	30.5 mm	10 mm	10 mm
85310-04	1/4"	13.5 mm	37 mm	12 mm	12.5 mm
85310-05	5/16"	15.5 mm	40 mm	14 mm	14 mm
85310-06	3/8"	19 mm	47 mm	17 mm	18 mm
85310-08	1/2"	22 mm	59 mm	20 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
