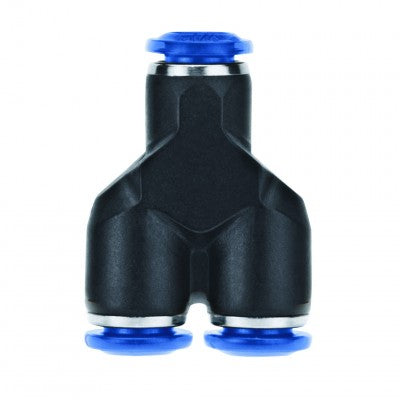

85310-53 AIGNEP | 85 Series | Union Y | 5/32" x (2) 5/32" Tube | Pack of 10
85310-53 by AIGNEP | 85 Series | Union | 5/32" x (2) 5/32" Tube | Y | Pack of 10
85310-53 AIGNEP | 85 Series | Union Y | 5/32" x (2) 5/32" Tube | Pack of 10

85310-53 by AIGNEP | 85 Series | Union | 5/32" x (2) 5/32" Tube | Y | Pack of 10

Save $13.39 Save $13.39
$33.48
$33.48 - $33.48
$33.48
$20.09
$20.09 - $20.09
$20.09

Package Quantity: 10 ea

Specifications for Variant SKU: 85310-53 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Y
Ends Configuration: 5/32in Push-to-Connect, 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nylon

Union Y Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

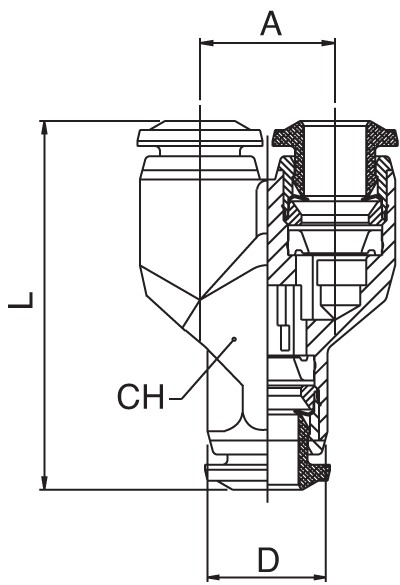

Product Number Tube A L CH D
85310-53 5/32" 11 mm 30.5 mm 10 mm 10 mm
85310-04 1/4" 13.5 mm 37 mm 12 mm 12.5 mm
85310-05 5/16" 15.5 mm 40 mm 14 mm 14 mm
85310-06 3/8" 19 mm 47 mm 17 mm 18 mm
85310-08 1/2" 22 mm 59 mm 20 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
