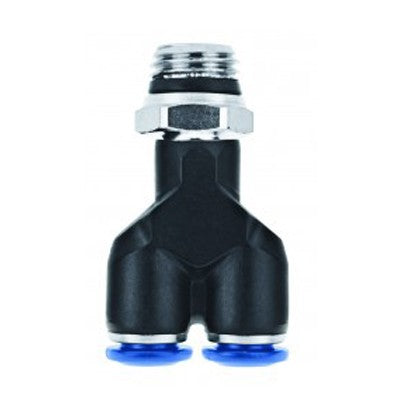

85320-06-06 AIGNEP | 85 Series | Swivel Y Connector | 3/8" Tube x 3/8" Swift-Fit Male | Pack of 10

85320-06-06 by AIGNEP | 85 Series | Swivel Connector | 3/8" Tube x 3/8" Swift-Fit Male | Y | Pack of 10

Save $0.31

$31.11

$31.11 - $31.11

$31.11

$30.80

$30.80 - $30.80

$30.80

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85320-06-06 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Y
Ends Configuration:	3/8in Push-to-Connect, 3/8in Male Swift-Fit, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	NBR 70

Union Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	C	L
85320-53-02	5/32"	1/8"	0.216"	5.5 mm	11 mm	38 mm
85320-53-04	5/32"	1/4"	0.275"	7 mm	11 mm	40.5 mm
85320-04-02	1/4"	1/8"	0.216"	5.5 mm	13 mm	43 mm
85320-04-04	1/4"	1/4"	0.275"	7 mm	13.5 mm	45.5 mm
85320-05-02	5/16"	1/8"	0.216"	5.5 mm	15.5 mm	47 mm
85320-05-04	5/16"	1/4"	0.275"	7 mm	15.5 mm	49 mm
85320-05-06	5/16"	3/8"	0.295"	7.5 mm	15.5 mm	49.5 mm
85320-06-04	3/8"	1/4"	0.275"	7 mm	19 mm	56.5 mm
85320-06-06	3/8"	3/8"	0.295"	7.5 mm	19 mm	57.5 mm
85320-06-08	3/8"	1/2"	0.354"	9 mm	19 mm	60 mm
85320-08-06	1/2"	3/8"	0.295"	7.5 mm	22 mm	66.5 mm
85320-08-08	1/2"	1/2"	0.354"	9 mm	22 mm	68 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
