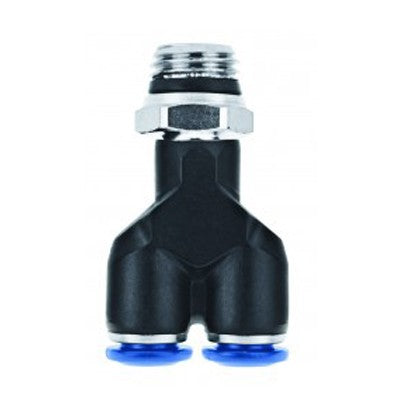

85320-08-06 AIGNEP | 85 Series | Swivel Y Connector | 1/2" Tube x 3/8" Swift-Fit Male | Pack of 10
85320-08-06 by AIGNEP | 85 Series | Swivel Connector | 1/2" Tube x 3/8" Swift-Fit Male | Y | Pack of 10
85320-08-06 AIGNEP | 85 Series | Swivel Y Connector | 1/2" Tube x 3/8" Swift-Fit Male | Pack of 10

85320-08-06 by AIGNEP | 85 Series | Swivel Connector | 1/2" Tube x 3/8" Swift-Fit Male | Y | Pack of 10

Save $0.37 Save $0.37
$36.89
$36.89 - $36.89
$36.89
$36.52
$36.52 - $36.52
$36.52

Package Quantity: 10 ea

Specifications for Variant SKU: 85320-08-06 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Y
Ends Configuration: 1/2in Push-to-Connect, 3/8in Male Swift-Fit, 1/2in Push-to-Connect, Some Ends Match
Material(s): Nylon
Seal Material(s): NBR 70

Union Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B C L
85320-53-02 5/32" 1/8" 0.216" 5.5 mm 11 mm 38 mm
85320-53-04 5/32" 1/4" 0.275" 7 mm 11 mm 40.5 mm
85320-04-02 1/4" 1/8" 0.216" 5.5 mm 13 mm 43 mm
85320-04-04 1/4" 1/4" 0.275" 7 mm 13.5 mm 45.5 mm
85320-05-02 5/16" 1/8" 0.216" 5.5 mm 15.5 mm 47 mm
85320-05-04 5/16" 1/4" 0.275" 7 mm 15.5 mm 49 mm
85320-05-06 5/16" 3/8" 0.295" 7.5 mm 15.5 mm 49.5 mm
85320-06-04 3/8" 1/4" 0.275" 7 mm 19 mm 56.5 mm
85320-06-06 3/8" 3/8" 0.295" 7.5 mm 19 mm 57.5 mm
85320-06-08 3/8" 1/2" 0.354" 9 mm 19 mm 60 mm
85320-08-06 1/2" 3/8" 0.295" 7.5 mm 22 mm 66.5 mm
85320-08-08 1/2" 1/2" 0.354" 9 mm 22 mm 68 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
