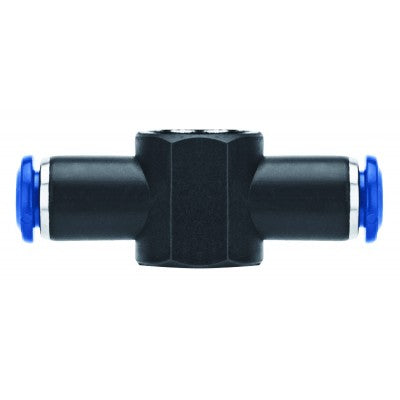

85510-05-04 AIGNEP | 85 Series | Double Banjo Body Composite | 5/16" Tube x 1/4" Stem | Pack of 10
85510-05-04 by AIGNEP | 85 Series | Double Banjo Body Composite | 5/16" Tube x 1/4" Stem | Pack of 10
85510-05-04 AIGNEP | 85 Series | Double Banjo Body Composite | 5/16" Tube x 1/4" Stem | Pack of 10

85510-05-04 by AIGNEP | 85 Series | Double Banjo Body Composite | 5/16" Tube x 1/4" Stem | Pack of 10

Save $0.17 Save $0.17
$16.89
$16.89 - $16.89
$16.89
$16.72
$16.72 - $16.72
$16.72

Package Quantity: 10 ea

Specifications for Variant SKU: 85510-05-04 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Banjo
Ends Configuration: 5/16in Push-to-Connect, 1/4in Female Banjo
Material(s): Nylon

Double Banjo Body Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nylon

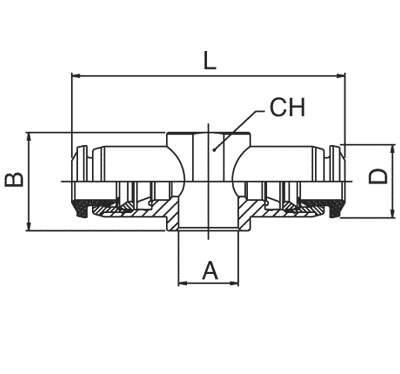

Product Number Tube A B (IN) B L CH D
85510-53-02 5/32" 1/8" 0.551" 14 mm 43 mm 14 mm 10 mm
85510-05-02 5/16" 1/8" 0.649" 16.5 mm 47 mm 14 mm 14 mm
85510-05-04 5/16" 1/4" 0.728" 18.5 mm 52 mm 18 mm 14 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
