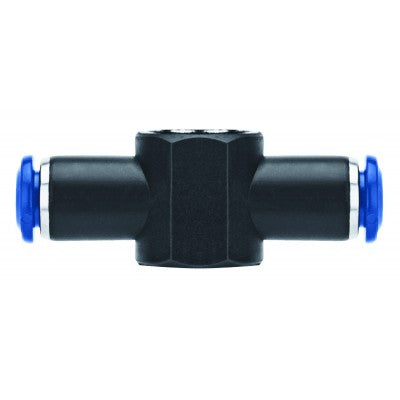

85510-53-02 AIGNEP | 85 Series | Double Banjo Body Composite | 5/32" Tube x 1/8" Stem | Pack of 10

85510-53-02 by AIGNEP | 85 Series | Double Banjo Body Composite | 5/32" Tube x 1/8" Stem | Pack of 10

Save $0.15

$14.52

$14.52 - $14.52

$14.52

$14.37

$14.37 - $14.37

$14.37

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85510-53-02 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Banjo
Material(s):	Nylon

Double Banjo Body Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nylon

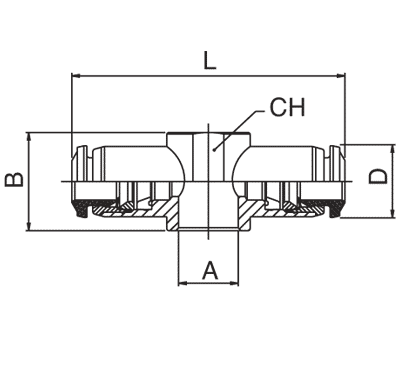

Product Number	Tube	A	B (IN)	B	L	CH	D
85510-53-02	5/32"	1/8"	0.551"	14 mm	43 mm	14 mm	10 mm
85510-05-02	5/16"	1/8"	0.649"	16.5 mm	47 mm	14 mm	14 mm
85510-05-04	5/16"	1/4"	0.728"	18.5 mm	52 mm	18 mm	14 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
