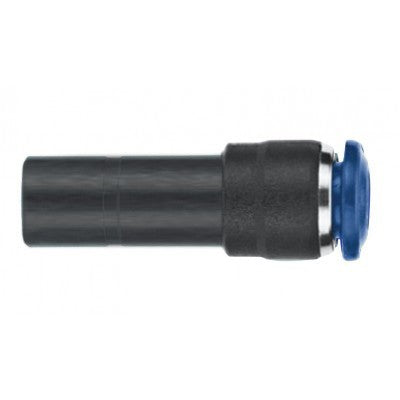

85700-05-04 by AIGNEP | 85 Series | Reducer | 5/16" Male Stud x 1/4" Tube | Pack of 10

Save $0.11 Save $0.11
Original price $11.26
Original price $11.26 - Original price $11.26
Original price $11.26
Current price $11.15
$11.15 - $11.15
Current price $11.15

Package Quantity: 10 ea

Specifications for Variant SKU: 85700-05-04 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Tube Stub, 1/4in Push-to-Connect
Material(s): Nylon

Tube Reducer Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

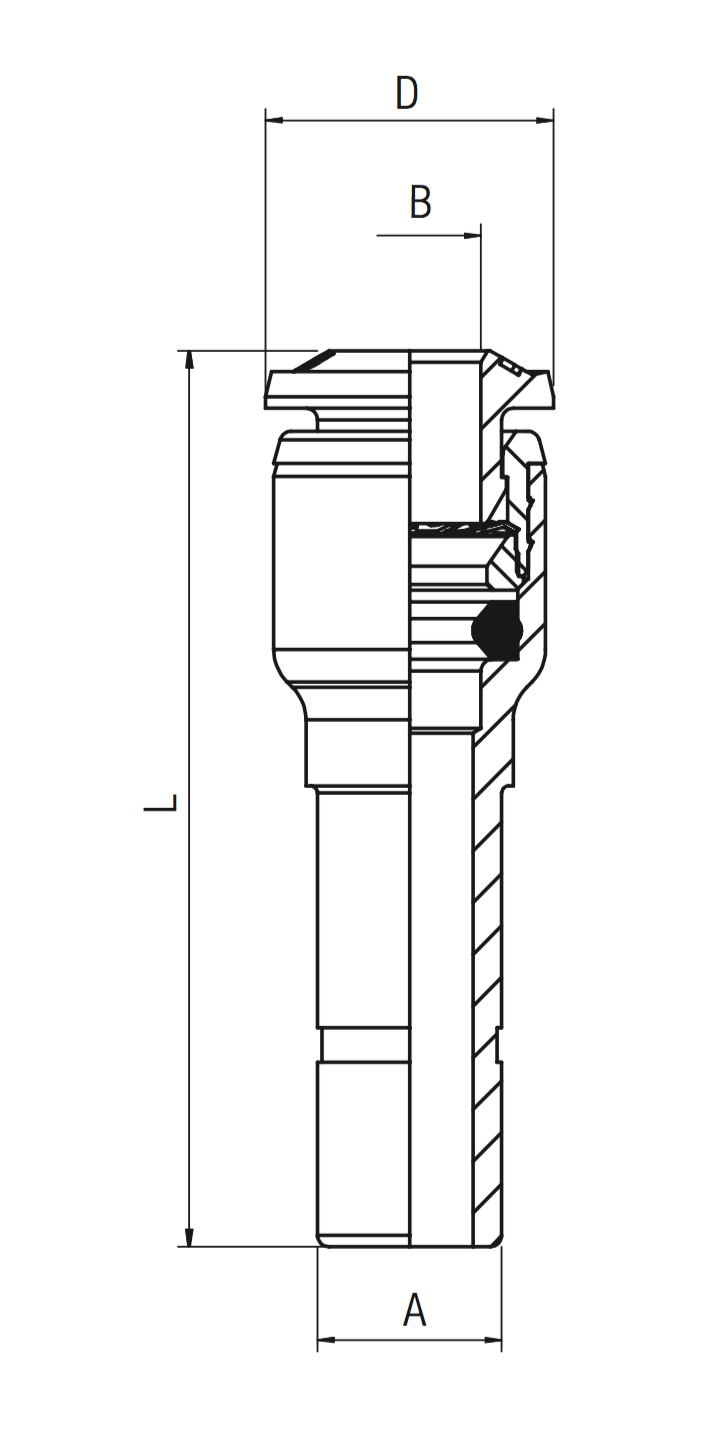

Product Number A B L D
85700-04-53 1/4" 4 mm 34 mm 10 mm
85700-05-53 5/16" 4 mm 38 mm 12 mm
85700-05-04 5/16" 1/4" 39 mm 12.5 mm
85700-06-04 3/8" 1/4" 42.5 mm 12.5 mm
85700-06-05 3/8" 8 mm 42 mm 14 mm
85700-08-04 1/2" 1/4" 38.5 mm 12.5 mm
85700-08-05 1/2" 5/16" 41.5 mm 14 mm
85700-08-06 1/2" 3/8" 48.5 mm 17 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
