85700-08-05 AIGNEP | 85 Series | Reducer | 1/2" Male Stud x 5/16" Tube | Pack of 10

85700-08-05 by AIGNEP | 85 Series | Reducer | 1/2" Male Stud x 5/16" Tube | Pack of 10

Save $0.13

$12.30

$12.30 - $12.30

$12.30

$12.17

$12.17 - $12.17

$12.17

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85700-08-05 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Tube Stub, 5/16in Push-to-Connect
Material(s):	Nylon

Tube Reducer Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

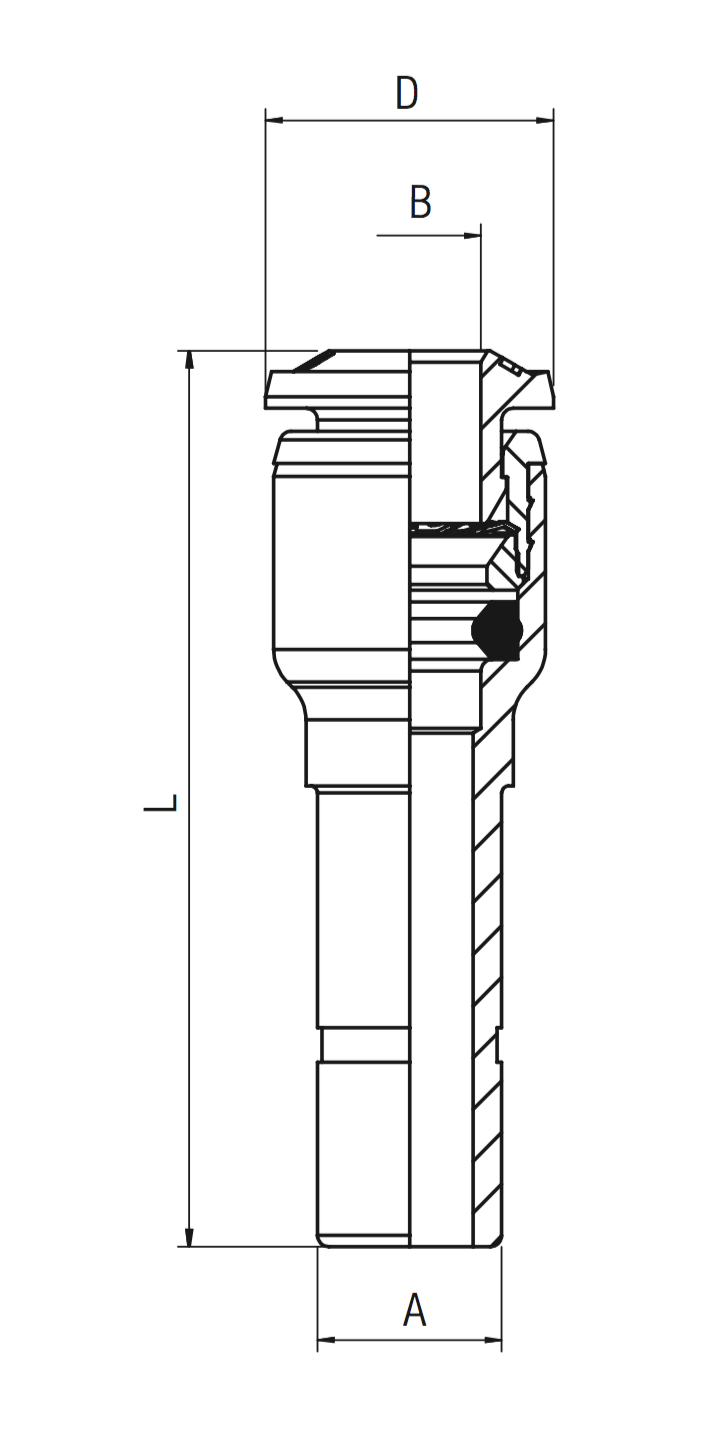

Product Number	A	B	L	D
85700-04-53	1/4"	4 mm	34 mm	10 mm
85700-05-53	5/16"	4 mm	38 mm	12 mm
85700-05-04	5/16"	1/4"	39 mm	12.5 mm
85700-06-04	3/8"	1/4"	42.5 mm	12.5 mm
85700-06-05	3/8"	8 mm	42 mm	14 mm
85700-08-04	1/2"	1/4"	38.5 mm	12.5 mm
85700-08-05	1/2"	5/16"	41.5 mm	14 mm
85700-08-06	1/2"	3/8"	48.5 mm	17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
