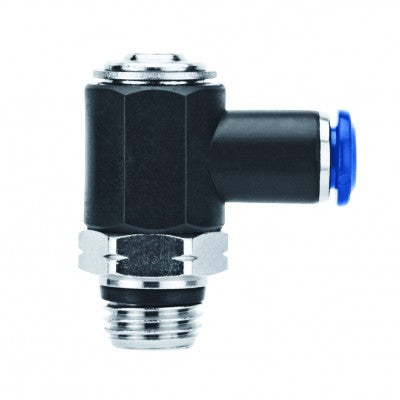

85953-06-04 AIGNEP | Functional (Flow Controls) Series | Flow Control | 3/8" Tube x 1/4" Swift-Fit Male | Flow Out Screw Adjustment

85953-06-04 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 3/8" Tube x 1/4" Swift-Fit Male | Flow Out Screw Adjustment

Name: 85953-06-04 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 3/8" Tube x 1/4" Swift-Fit Male | Flow Out Screw Adjustment
Brand: AIGNEP
SKU: 85953-06-04 AIGNEP
Price: 8.13 USD
Availability: InStock

Save $5.42

$13.55

$13.55 - $13.55

$13.55

$8.13

$8.13 - $8.13

$8.13

Specifications for Variant SKU: 85953-06-04 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	NBR 70

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2	CH	Code
85953-02-32	1/8"	10-32	0.157"	4 mm	19 mm	24 mm	8 mm	C
85953-02-02	1/8"	1/8"	0.217"	5.5 mm	21 mm	30.5 mm	14 mm	C
85953-53-32	5/32"	10-32	0.157"	4 mm	19 mm	24 mm	8 mm	C
85953-06-04	3/8''	1/4"	0.295"	7.5 mm	30.5 mm	41 mm	20 mm	C

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
