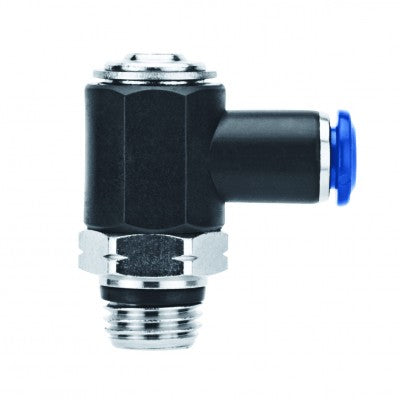

85953-53-32 AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment
85953-53-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment
85953-53-32 AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment

85953-53-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment

Save $6.35 Save $6.35
$15.87
$15.87 - $15.87
$15.87
$9.52
$9.52 - $9.52
$9.52
Specifications for Variant SKU: 85953-53-32 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/32in Push-to-Connect, 10-32 Male UNF
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L1 L2 CH Code
85953-02-32 1/8" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm C
85953-02-02 1/8" 1/8" 0.217" 5.5 mm 21 mm 30.5 mm 14 mm C
85953-53-32 5/32" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm C
85953-06-04 3/8'' 1/4" 0.295" 7.5 mm 30.5 mm 41 mm 20 mm C
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
