86330-06-06 AIGNEP | Ball Valves Series | Ball Valve | 3/8" Tube x 3/8" Male NPTF

86330-06-06 by AIGNEP | Ball Valves Series | Ball Valve | 3/8" Tube x 3/8" Male NPTF

Name: 86330-06-06 by AIGNEP | Ball Valves Series | Ball Valve | 3/8" Tube x 3/8" Male NPTF
Brand: AIGNEP
SKU: 86330-06-06 AIGNEP
Price: 6.59 USD
Availability: InStock

Save $4.39

$10.98

$10.98 - $10.98

$10.98

$6.59

$6.59 - $6.59

$6.59

Quantity

Specifications for Variant SKU: 86330-06-06 AIGNEP
Series:	Ball Valves Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect, 3/8in Male NPTF
Material(s):	Chrome Plated Brass, Plastic

Inch Tube x Male

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, gas (Consult factory for seal compatability)
Body: Chrome Plated Brass
Thread Type: NPTF

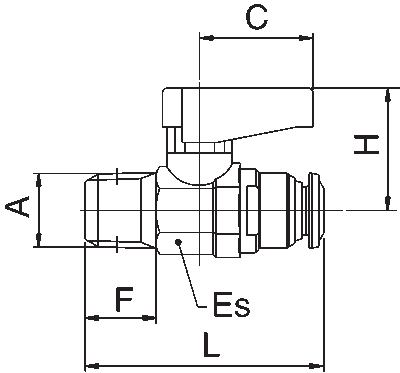

Tube	A NPTF	Color Plate	Thread Type	L	B NPTF IN	B NPTF	Es	C	H
86330-53-02	5/32"	1/8"	Composite	NPTF	35 mm	0.332"	8.5 mm	14 mm	19 mm	21 mm
86330-04-04	1/4"	1/4"	Composite	NPTF	38.5 mm	0.488"	12.5 mm	14 mm	19 mm	21 mm
86330-06-06	3/8"	3/8"	Composite	NPTF	45 mm	0.507"	13 mm	18 mm	19 mm	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
