86330-53-02 AIGNEP | Ball Valves Series | Ball Valve | 5/32" Tube x 1/8" Male NPTF
86330-53-02 by AIGNEP | Ball Valves Series | Ball Valve | 5/32" Tube x 1/8" Male NPTF
86330-53-02 AIGNEP | Ball Valves Series | Ball Valve | 5/32" Tube x 1/8" Male NPTF

86330-53-02 by AIGNEP | Ball Valves Series | Ball Valve | 5/32" Tube x 1/8" Male NPTF

Save $0.06 Save $0.06
$6.03
$6.03 - $6.03
$6.03
$5.97
$5.97 - $5.97
$5.97
Specifications for Variant SKU: 86330-53-02 AIGNEP
Series: Ball Valves Series
Shape (Orientation): Straight
Ends Configuration: 5/32in Push-to-Connect, 1/8in Male NPTF
Material(s): Chrome Plated Brass

Inch Tube x Male

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, gas (Consult factory for seal compatability)
Body: Chrome Plated Brass
Thread Type: NPTF

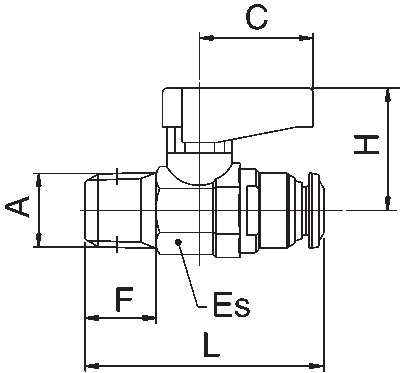

Product Number Tube A NPTF Color Plate Thread Type L B NPTF IN B NPTF Es C H
86330-53-02 5/32" 1/8" Composite NPTF 35 mm 0.332" 8.5 mm 14 mm 19 mm 21 mm
86330-04-04 1/4" 1/4" Composite NPTF 38.5 mm 0.488" 12.5 mm 14 mm 19 mm 21 mm
86330-06-06 3/8" 3/8" Composite NPTF 45 mm 0.507" 13 mm 18 mm 19 mm 22 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
