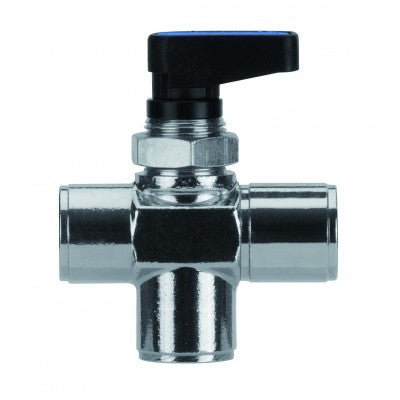

86710-02 AIGNEP | Ball Valves Series | 3-Position Ball Valve Open Center | Female 1/8" NPTF

86710-02 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Open Center | Female 1/8" NPTF

Name: 86710-02 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Open Center | Female 1/8" NPTF
Brand: AIGNEP
SKU: 86710-02 AIGNEP
Price: 11.25 USD
Availability: InStock

Save $7.50

$18.75

$18.75 - $18.75

$18.75

$11.25

$11.25 - $11.25

$11.25

Specifications for Variant SKU: 86710-02 AIGNEP
Series:	Ball Valves Series
Shape (Orientation):	Tee
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s):	Chrome Plated Brass

Three Position Ball Valve (OPEN CENTER)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF

Color Plate	Thread Type	L	Orifice	Es1	Es2	S Max	A/B/C	G	H1	H2
86710-02	Composite	NPTF	37.5 mm	5.5 mm	17 mm	17 mm	4.5 mm	1/8"	19 mm	33.5 mm	16.5 mm
86710-04	Composite	NPTF	37.5 mm	5.5 mm	17 mm	17 mm	4.5 mm	1/4"	19 mm	33.5 mm	16.5 mm
86710-06	Composite	NPTF	48.5 mm	7 mm	17 mm	21 mm	4.5 mm	3/8"	19 mm	35 mm	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
