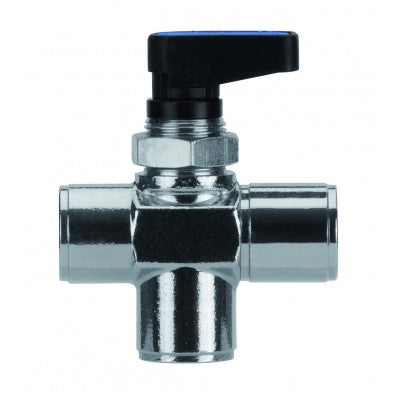

86710-04 AIGNEP | Ball Valves Series | 3-Position Ball Valve Open Center | Female 1/4" NPTF

86710-04 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Open Center | Female 1/4" NPTF

Name: 86710-04 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Open Center | Female 1/4" NPTF
Brand: AIGNEP
SKU: 86710-04 AIGNEP
Price: 11.41 USD
Availability: InStock

Save $7.61

$19.02

$19.02 - $19.02

$19.02

$11.41

$11.41 - $11.41

$11.41

Specifications for Variant SKU: 86710-04 AIGNEP
Series:	Ball Valves Series
Shape (Orientation):	Tee
Ends Configuration:	1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Chrome Plated Brass

Three Position Ball Valve (OPEN CENTER)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF

Color Plate	Thread Type	L	Orifice	Es1	Es2	S Max	A/B/C	G	H1	H2
86710-02	Composite	NPTF	37.5 mm	5.5 mm	17 mm	17 mm	4.5 mm	1/8"	19 mm	33.5 mm	16.5 mm
86710-04	Composite	NPTF	37.5 mm	5.5 mm	17 mm	17 mm	4.5 mm	1/4"	19 mm	33.5 mm	16.5 mm
86710-06	Composite	NPTF	48.5 mm	7 mm	17 mm	21 mm	4.5 mm	3/8"	19 mm	35 mm	22 mm
