86720-02 AIGNEP | Ball Valves Series | Right Angle 90° Elbow Ball Valve | Female 1/8" NPTF

86720-02 by AIGNEP | Ball Valves Series | Ball Valve | Female 1/8" NPTF | 90° Elbow

Name: 86720-02 by AIGNEP | Ball Valves Series | Ball Valve | Female 1/8" NPTF | 90° Elbow
Brand: AIGNEP
SKU: 86720-02 AIGNEP
Price: 10.12 USD
Availability: InStock

Save $0.10

$10.22

$10.22 - $10.22

$10.22

$10.12

$10.12 - $10.12

$10.12

Quantity

Specifications for Variant SKU: 86720-02 AIGNEP
Series:	Ball Valves Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s):	Chrome Plated Brass

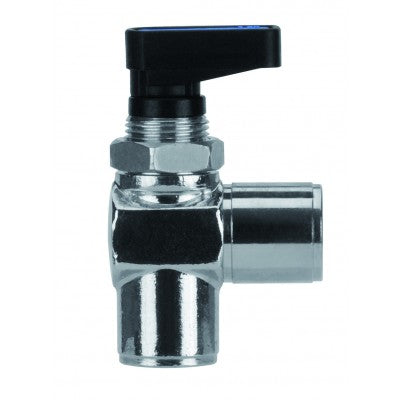

Right Angle Ball Valve

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF

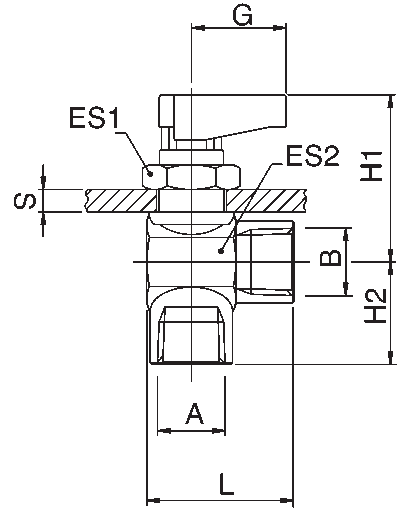

Color Plate	Thread Type	L	Orifice	A/B	Es1	Es2	S Max	G	H1	H2
86720-02	Composite	NPTF	37.5 mm	5.5 mm	1/8"	17 mm	17 mm	4.5 mm	19 mm	33.5 mm	16.5 mm
86720-04	Composite	NPTF	37.5 mm	5.5 mm	1/4"	17 mm	17 mm	4.5 mm	19 mm	33.5 mm	16.5 mm
86720-06	Composite	NPTF	39 mm	7 mm	3/8"	17 mm	21 mm	4.5 mm	19 mm	35 mm	22 mm
