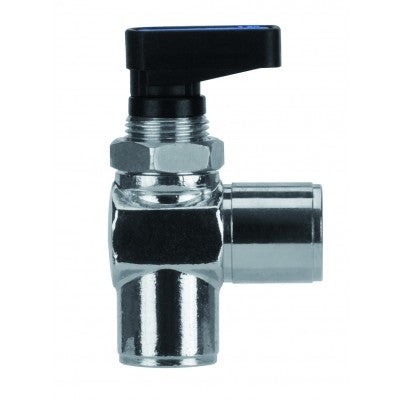

86720-06 AIGNEP | Ball Valves Series | Right Angle 90° Elbow Ball Valve | Female 3/8" NPTF
86720-06 by AIGNEP | Ball Valves Series | Ball Valve | Female 3/8" NPTF | 90° Elbow
86720-06 AIGNEP | Ball Valves Series | Right Angle 90° Elbow Ball Valve | Female 3/8" NPTF

86720-06 by AIGNEP | Ball Valves Series | Ball Valve | Female 3/8" NPTF | 90° Elbow

Save $7.54 Save $7.54
$18.85
$18.85 - $18.85
$18.85
$11.31
$11.31 - $11.31
$11.31
Specifications for Variant SKU: 86720-06 AIGNEP
Series: Ball Valves Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPTF, 3/8in Female NPTF, Some Ends Match
Material(s): Chrome Plated Brass

Right Angle Ball Valve

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF

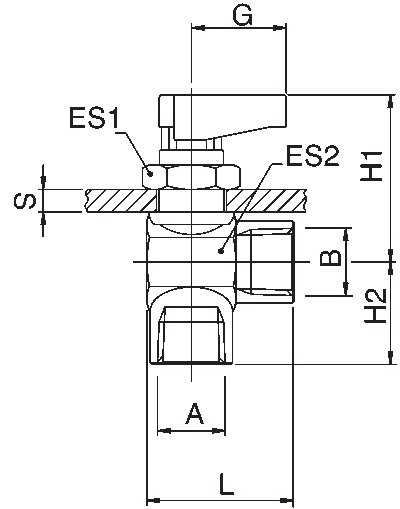

Product Number Color Plate Thread Type L Orifice A/B Es1 Es2 S Max G H1 H2
86720-02 Composite NPTF 37.5 mm 5.5 mm 1/8" 17 mm 17 mm 4.5 mm 19 mm 33.5 mm 16.5 mm
86720-04 Composite NPTF 37.5 mm 5.5 mm 1/4" 17 mm 17 mm 4.5 mm 19 mm 33.5 mm 16.5 mm
86720-06 Composite NPTF 39 mm 7 mm 3/8" 17 mm 21 mm 4.5 mm 19 mm 35 mm 22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
