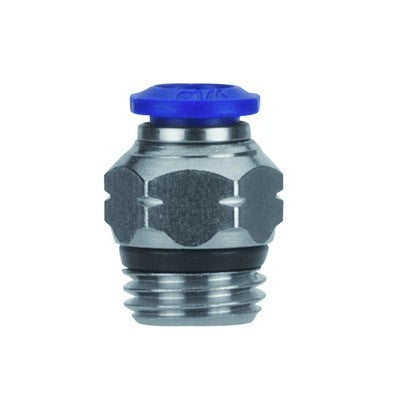

87000-02-04 AIGNEP | 87 / 88 Series | Straight Male | 1/8" Tube x 1/4" Swift-Fit Male | Pack of 10
87000-02-04 by AIGNEP | 87 / 88 Series | 1/8" Tube x 1/4" Swift-Fit Male | Straight | Pack of 10
87000-02-04 AIGNEP | 87 / 88 Series | Straight Male | 1/8" Tube x 1/4" Swift-Fit Male | Pack of 10

87000-02-04 by AIGNEP | 87 / 88 Series | 1/8" Tube x 1/4" Swift-Fit Male | Straight | Pack of 10

Save $12.59 Save $12.59
$29.92
$29.92 - $29.92
$29.92
$17.33
$17.33 - $17.33
$17.33

Package Quantity: 10 ea

Specifications for Variant SKU: 87000-02-04 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Push-to-Connect, 1/4in Male Swift-Fit
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

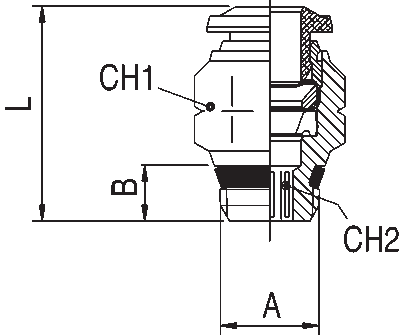

Product Number Tube A B (IN) B L CH1 CH2
87000-02-02 1/8" 1/8" 0.217" 5.5 mm 16.5 mm 11 mm 2 mm
87000-02-04 1/8" 1/4" 0.276" 7 mm 18.5 mm 14 mm 2 mm
87000-53-02 5/32" 1/8" 0.217" 5.5 mm 18 mm 11 mm 3 mm
87000-53-04 5/32" 1/4" 0.276" 7 mm 19.5 mm 14 mm 3 mm
87000-04-02 1/4" 1/8" 0.217" 5.5 mm 22 mm 13 mm 4 mm
87000-04-04 1/4" 1/4" 0.276" 7 mm 21 mm 14 mm 4 mm
87000-04-06 1/4" 3/8" 0.295" 7.5 mm 21 mm 17 mm 4 mm
87000-05-02 5/16" 1/8" 0.217" 5.5 mm 24.5 mm 14 mm 5 mm
87000-05-04 5/16" 1/4" 0.276" 7 mm 22 mm 14 mm 6 mm
87000-05-06 5/16" 3/8" 0.295" 7.5 mm 23 mm 17 mm 6 mm
87000-06-02 3/8" 1/8" 0.217" 5.5 mm 28.5 mm 17 mm 5 mm
87000-06-04 3/8" 1/4" 0.276" 7 mm 28.5 mm 17 mm 7 mm
87000-06-06 3/8" 3/8" 0.295" 7.5 mm 26.5 mm 17 mm 7 mm
87000-06-08 3/8" 1/2" 0.354" 9 mm 26.5 mm 21 mm 7 mm
87000-08-02 1/2" 1/8" 0.217" 5.5 mm 33 mm 20 mm 5 mm
87000-08-04 1/2" 1/4" 0.276" 7 mm 33 mm 20 mm 5 mm
87000-08-06 1/2" 3/8" 0.295" 7.5 mm 32 mm 20 mm 9 mm
87000-08-08 1/2" 1/2" 0.354" 9 mm 32 mm 21 mm 10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
