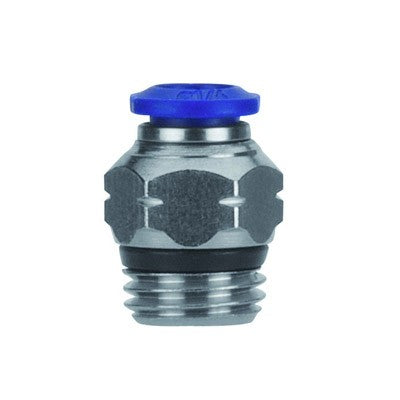

87000-08-02 AIGNEP | 87 / 88 Series | Straight Male | 1/2" Tube x 1/8" Swift-Fit Male | Pack of 10

87000-08-02 by AIGNEP | 87 / 88 Series | 1/2" Tube x 1/8" Swift-Fit Male | Straight | Pack of 10

Save $0.24

$23.56

$23.56 - $23.56

$23.56

$23.32

$23.32 - $23.32

$23.32

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 87000-08-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Nickel Plated Brass
Seal Material(s):	NBR 70

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

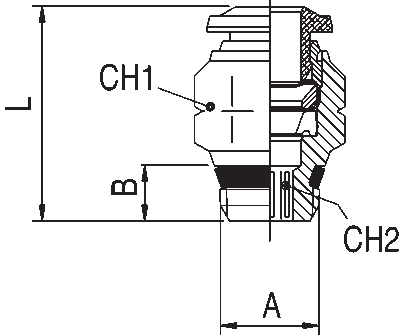

Product Number	Tube	A	B (IN)	B	L	CH1	CH2
87000-02-02	1/8"	1/8"	0.217"	5.5 mm	16.5 mm	11 mm	2 mm
87000-02-04	1/8"	1/4"	0.276"	7 mm	18.5 mm	14 mm	2 mm
87000-53-02	5/32"	1/8"	0.217"	5.5 mm	18 mm	11 mm	3 mm
87000-53-04	5/32"	1/4"	0.276"	7 mm	19.5 mm	14 mm	3 mm
87000-04-02	1/4"	1/8"	0.217"	5.5 mm	22 mm	13 mm	4 mm
87000-04-04	1/4"	1/4"	0.276"	7 mm	21 mm	14 mm	4 mm
87000-04-06	1/4"	3/8"	0.295"	7.5 mm	21 mm	17 mm	4 mm
87000-05-02	5/16"	1/8"	0.217"	5.5 mm	24.5 mm	14 mm	5 mm
87000-05-04	5/16"	1/4"	0.276"	7 mm	22 mm	14 mm	6 mm
87000-05-06	5/16"	3/8"	0.295"	7.5 mm	23 mm	17 mm	6 mm
87000-06-02	3/8"	1/8"	0.217"	5.5 mm	28.5 mm	17 mm	5 mm
87000-06-04	3/8"	1/4"	0.276"	7 mm	28.5 mm	17 mm	7 mm
87000-06-06	3/8"	3/8"	0.295"	7.5 mm	26.5 mm	17 mm	7 mm
87000-06-08	3/8"	1/2"	0.354"	9 mm	26.5 mm	21 mm	7 mm
87000-08-02	1/2"	1/8"	0.217"	5.5 mm	33 mm	20 mm	5 mm
87000-08-04	1/2"	1/4"	0.276"	7 mm	33 mm	20 mm	5 mm
87000-08-06	1/2"	3/8"	0.295"	7.5 mm	32 mm	20 mm	9 mm
87000-08-08	1/2"	1/2"	0.354"	9 mm	32 mm	21 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
