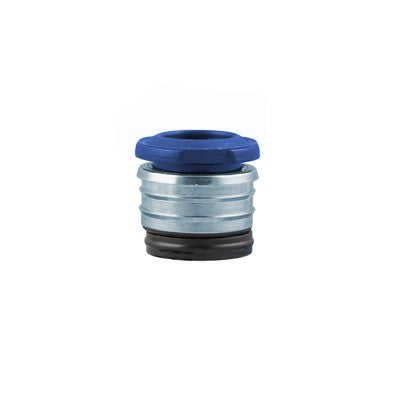

87800-02 AIGNEP | 87 / 88 Series | Push-Fit Cartridge Insert | 1/8" Tube | Pack of 10

87800-02 by AIGNEP | 87 / 88 Series | Push-Fit Cartridge Insert | 1/8" Tube | Pack of 10

Save $15.50

$32.57

$32.57 - $32.57

$32.57

$17.07

$17.07 - $17.07

$17.07

Package Quantity: 10 ea

Specifications for Variant SKU: 87800-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Push-to-Connect
Material(s):	Nickel-Plated Brass

Push-In Fitting

Aignep® Push-Fit Cartridge

A nickel-plated brass insert that turns a machined port into an instant push-to-connect tube fitting — push the tube in to connect, press the collet to release. Rated for compressed air and water from vacuum to 290 PSI.

⚙

Nickel-Plated Brass

Durable, corrosion-resistant body

♦

Vacuum to 290 PSI

Compressed air, vacuum & water

★

-4 to 176 °F

Wide operating range

✓

Push-to-Connect

Six sizes, 1/8" to 1/2"

1

What is this product used for?

The push-fit cartridge is a self-contained brass insert that presses into a machined seat in a housing, port, or manifold to create an instant push-to-connect tube connection — a quick way to build push-in fittings into custom bodies and equipment. Installation uses a seat-forming tool and a lip seal, per Aignep’s assembly instructions.

Adding push-in connections to manifolds, blocks & custom bodies
Compressed air & pneumatic control circuits
Vacuum, water and low-pressure fluid lines
OEM machinery & equipment builds
Integrating push-to-connect tubing into machined ports

2

What are the key specifications?

Body

Nickel-plated brass

Pressure Rating

Vacuum to 290 PSI

Temperature Range

-4 to 176 °F (-20 to 80 °C)

Media

Compressed air, vacuum, water

Tubing Compatibility

Nylon, polyethylene, polyurethane, copper

3

What are the main product features?

Push-to-connect operation — insert the tube for an instant, secure hold; press the collet to release.
Nickel-plated brass body — added corrosion resistance and long service life.
Stainless clamping washer — grips the tube securely and holds under vibration and impact.
Vacuum to 290 PSI — suitable for compressed air, vacuum, and water systems.
Many tube sizes — 1/8", 5/32", 1/4", 5/16", 3/8", and 1/2".
Compact cartridge design — presses into machined seats in custom bodies and manifolds.

4

Which sizes are available?

Product Number	Tube OD	D (Ø)	H1	H2
87800-02	1/8"	0.264" (6.7 mm)	0.382" (9.7 mm)	0.197" (5.0 mm)
87800-53	5/32"	0.343" (8.7 mm)	0.433" (11.0 mm)	0.220" (5.6 mm)
87800-04	1/4"	0.423" (10.75 mm)	0.528" (13.4 mm)	0.272" (6.9 mm)
87800-05	5/16"	0.500" (12.7 mm)	0.528" (13.4 mm)	0.270" (6.85 mm)
87800-06	3/8"	0.618" (15.7 mm)	0.630" (16.0 mm)	0.335" (8.5 mm)
87800-08	1/2"	0.720" (18.3 mm)	0.720" (18.3 mm)	0.374" (9.5 mm)

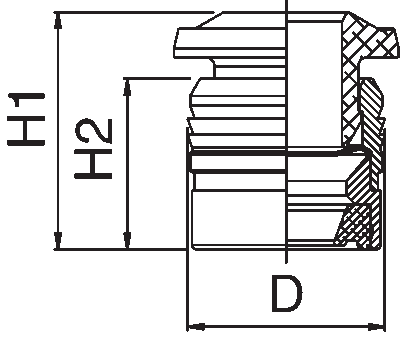

D, H1, and H2 are cartridge dimensions from the Aignep drawing (inch, with millimeters in parentheses). See the Aignep catalog for the dimensioned drawing and machined-seat specifications.

5

Where can I find product documents?

PDF

Aignep 85000 Series Catalog (2025)

Consult the manufacturer catalog for dimensioned drawings, machined-seat details, assembly instructions, and the most accurate, up-to-date product information.

i

Specifications are provided by the manufacturer (Aignep) and are subject to change. Confirm suitability for your media, pressure, and temperature conditions before use.

⚠ CAUTION: Depressurize the line before connecting or disconnecting fittings, and do not exceed the rated working pressure or temperature.
