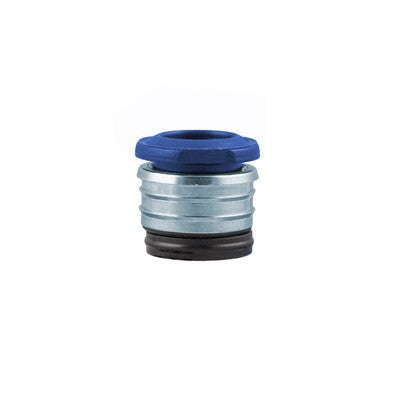

87800-06 AIGNEP | 87 / 88 Series | Push-Fit Cartridge Insert | 3/8" Tube | Pack of 10

87800-06 by AIGNEP | 87 / 88 Series | Push-Fit Cartridge Insert | 3/8" Tube | Pack of 10

Save $0.15

$16.14

$16.14 - $16.14

$16.14

$15.99

$15.99 - $15.99

$15.99

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 87800-06 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect
Material(s):	Nickel-Plated Brass

Push-Fit Cartridge

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

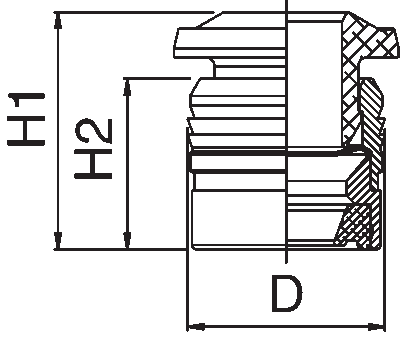

Tube	D	H1	H2
87800-02	1/8"	7 mm	10 mm	7 mm
87800-53	5/32"	8.5 mm	11.5 mm	8 mm
87800-04	1/4"	10.5 mm	13 mm	9.5 mm
87800-05	5/16"	12.5 mm	13 mm	9.5 mm
87800-06	3/8"	16 mm	16 mm	12 mm
87800-08	1/2"	19 mm	18 mm	14 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
