8800-56 by Coilhose | Heavy Duty Series Repair Kit | Regulator | 3/4" & 1" Repair Kit

8800-56 by Coilhose | Heavy Duty Series Repair Kit | Regulator | 3/4" & 1" Repair Kit

Save $26.13 Save $26.13
$65.33
$65.33 - $65.33
$65.33
$39.20
$39.20 - $39.20
$39.20
Coilhose Pneumatics - Filters, Regulators & Lubricators - Heavy Duty Series - Repair Kits
Specifications for Variant SKU: 8800-56 Coilhose
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Part Number Description Includes
Filter
8823-41L 1/4" & 3/8" Polycarbonate Bowl with Drain Cock -
8824-41L 1/2" Polycarbonate Bowl with Drain Cock -
8828-41L 3/4" & 1" Polycarbonate Bowl with Drain Cock -
Regulator
8800-53 1/4" & 3/8" Repair Kit Stem, Seat, Retainer Assembly (Part #8803-56)
Back Cap (Part #8803-3)
Back Cap O-Ring (Part #8803-21)
Back Cap Spring (Part #8804-18)
Diaphragm Assembly (Part #1483-59A)
8800-54 1/2" Repair Kit Stem, Seat, Retainer Assembly (Part #8804-56)
Back Cap (Part #8804-3)
Back Cap O-Ring (Part #8804-21)
Back Cap Spring (Part #8804-18)
Diaphragm Assembly (Part #1484-59A)

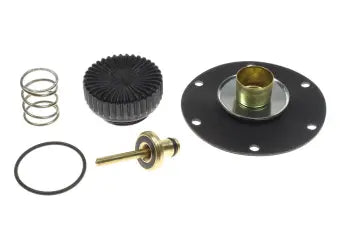

8800-56 3/4" & 1" Repair Kit Stem, Seat, Retainer Assembly (Part #8806-56)
Back Cap (Part #8806-3)
Back Cap O-Ring (Part #8806-21)
Back Cap Spring (Part #8806-18)
Diaphragm Assembly (Part #1488-59A)
Lubricator
8843-41L 1/4" & 3/8" Polycarbonate Bowl -
8844-41L 1/2" Polycarbonate Bowl -
8848-41L 3/4" & 1" Polycarbonate Bowl -
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
